    Aluminium Alloy Housing 300 Rpm Waterproof Slip Ring Solid Bore

    Ask Lasest Price
    Brand Name : CENO
    Model Number : ECN000-05P2-04S-IP65
    Certification : CE,RoHS,ISO9001,UL
    Price : Negotiable
    Payment Terms : T/T,Paypal, Western Union
    Supply Ability : 1000pcs per month
    Delivery Time : 1 week
    • Product Details
    • Company Profile

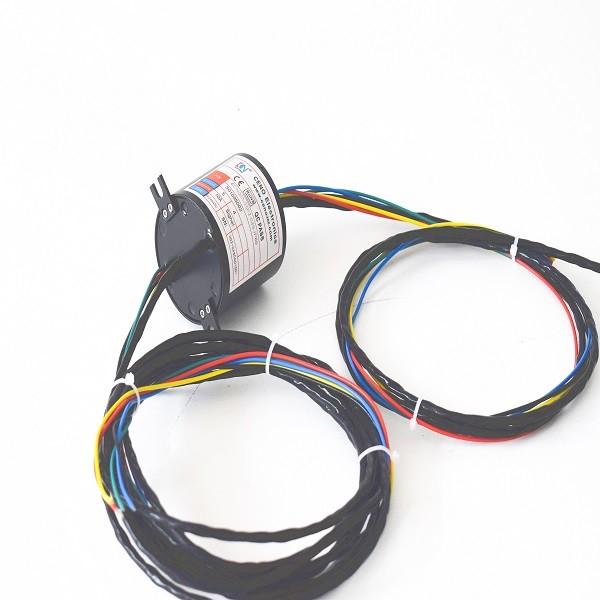

    Aluminium Alloy Housing 300 Rpm Waterproof Slip Ring Solid Bore

    Aluminium Alloy Housing 300 Rpm Waterproof Slip Ring Solid Bore


    Working speed 300 rpm IP65 waterproof slip ring,voltage 0~200 VAC/VDC,Black housing with aluminium alloy material.


    Slip rings of the ECN series have the characteristics of precious metal contacts and a long service life up to 230 million turns. Furthermore, they are water-proof, pressure-proof, and vibration resistant. The through bore can be used to mount the slip ring on a bracket or used for routing hydraulic pneumatic passages as it can integrate pneumatic hydraulic rotary joints, high-frequency rotary joints and fiber optic rotary joints to meet more technical challenges.ECN000-05P2-04S-IP65 is a waterproof slip ring with solid bore,integrated 5 rings of 10A and 1 group of Ether CAT signal.working speed up to 300 rpm.The typical application including food industry,ship offshore equipment,oil drilling etc.the waterproof slip ring could be divided into multiple protection grade, such as IP65,IP67,IP68 and so on,can work under water 1000M.CENO can provide different solutions according to customer’s requirement,please contact with us sales@ceno360.com.


    Feature

    • Power & signal integrated
    • Stable transmission
    • Long lifetime
    • IP Protection IP65
    • High pressure resistant

    Application

    • Canned equipment
    • Marine Population Systems
    • Underwater robots
    • Filling equipment
    • Oil well
    • Food industry

    Optional

    • Through hole size
    • Current rating and circuits number
    • Signal type
    • IP protection grade

    Specification


    ECN000-05P2-04S-IP65Specification
    Circuits & Current5*10A,1 group *Ether CAT
    Voltage0~200 VAC/VDC
    Electrical noiseMax 70mΩ (50rpm)
    Dielectric strength

    ≥1000V@50Hz (power)

    ≥300V@50Hz (signal)

    Insulation resistance

    ≥500MΩ@500VDC (power)

    ≥100MΩ@100VDC (signal)

    Operating speed0-300 rpm
    Contact materialPrecious metal
    Housing materialAluminium alloy black housing
    IP protection gradeIP65
    Working temperature-20°C ~ +80°C

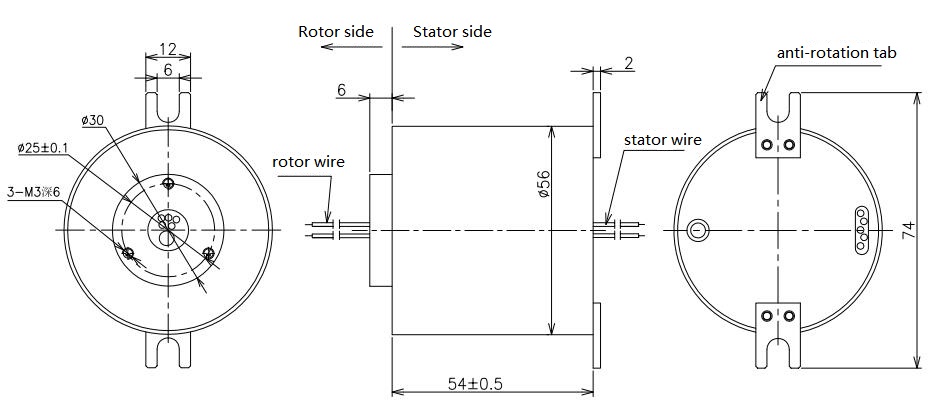

    Outline drawing



    Our Service

    1. Reply inquiry in 24 hours.

    2. Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.

    3. Answer your question detailed.

    4. Solved the problem with you during using our products.

    5. Samples will be offered to you for our future cooperation.


    FAQ

    1. What do we do?

    We focus on developing, designing, manufacturing high quality sliprings, and offer various solutions for rotating systems.


    2. How long have we been in the business?

    CENO established slip rings business since 2009. We have thousands of customers accepted our products or services.


    3. What is a slip ring?

    A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.


    4. How do I choose a slip ring?

    Proper selection of a slip ring solution requires details about your application’s operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. A good place to start your search is with our standard slip rings. If you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started.


    5. Do you offer custom slip rings?

    Yes, if you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started. Our engineers will come up with perfect solution for your needs.


    CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.


    Why with CENO


    Certification

    ISO9001,CE,RoHS,UL,Explosion-proof

    Single channel fiber optic rotary joint 6.8mm OD stainless steel


    CENO Advantage

    Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.


    Service CENO provides

    24 hours,7days consultant service.

    Mass and customized production.

    Solution offerring for 360° rotation system.


    Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
