    Precious Metal 55mm Through Hole Slip Ring Aluminium Alloy Housing

    Ask Lasest Price
    Brand Name : CENO
    Model Number : ECN055-03P3-12S
    Certification : CE,RoHS,ISO9001,UL
    Price : Negotiable
    Payment Terms : T/T,Paypal, Western Union
    Supply Ability : 500pcs per month
    Delivery Time : 1 week
    • Product Details
    • Company Profile

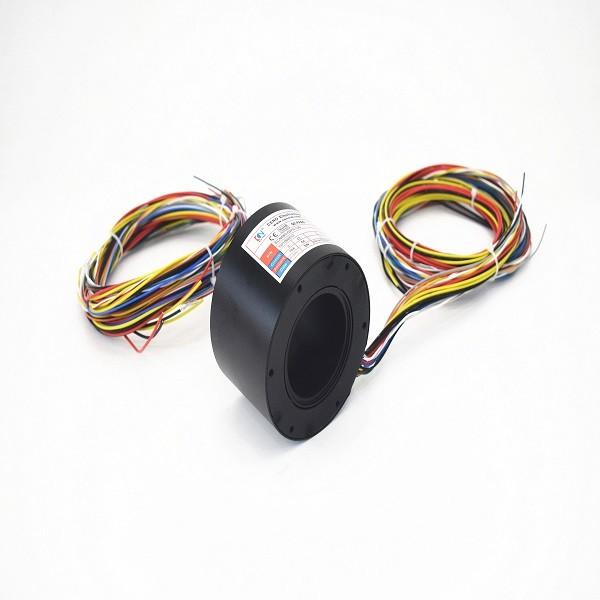

    Precious Metal 55mm Through Hole Slip Ring Aluminium Alloy Housing

    Precious Metal 55mm Through Hole Slip Ring Aluminium Alloy Housing


    Compact inner structure through bore rotary joint slip ring with 55mm inner bore,outer diameter 99mm,aluminium housing​


    Slip rings of the ECN series have the characteristics of precious metal contact and a long service life up to 230 million turns. Furthermore, they are water-proof, pressure-proof, and vibration resistant. Customizable lead wires and connectors support any plug-in including flying lead.The through bore can be used to routing hydraulic pneumatic passages as it can integrate pneumatic hydraulic rotary joints, high-frequency rotary joints and fiber optic rotary joints to meet more technical challenges.ECN055-03P3-12S is a customized through bore slip ring with 55mm inner bore. ECN series is a family of robust through bore slip rings, with a central hole up to φ980mm, designed and manufactured by CENO with patented technology.

    CENO also can meet different requirements for customer’s demand .



    Specification

    ECN055-03P3-12SSpecification
    Circuits & Current3*15A,12*5A (signal)
    Electrical noiseMax 10mΩ
    Dielectric strength

    ≥1000V@50Hz (power)

    ≥500V@50Hz (signal)

    Insulation resistance

    ≥500MΩ@1000VDC (power)

    ≥200MΩ@500VDC (signal)

    Operating speed0-50 rpm
    Contact materialPrecious metal
    Housing materialAluminium alloy
    IP protection gradeIP54
    Working temperature-40°C ~ +70°C
    Through bore size55 mm



    Features


    • Signal & Data Compatible
    • Outer diameter 99mm
    • Long cable length
    • Shaft mounting
    • Continuous 360° rotation

    Applications


    • Medical machine
    • Robot arms
    • Radar antennas
    • Military industry
    • Packaging machine




    Optional

    • Through hole size
    • Current & ring numbers
    • Signal type
    • IP protection grade
    • Contacts material

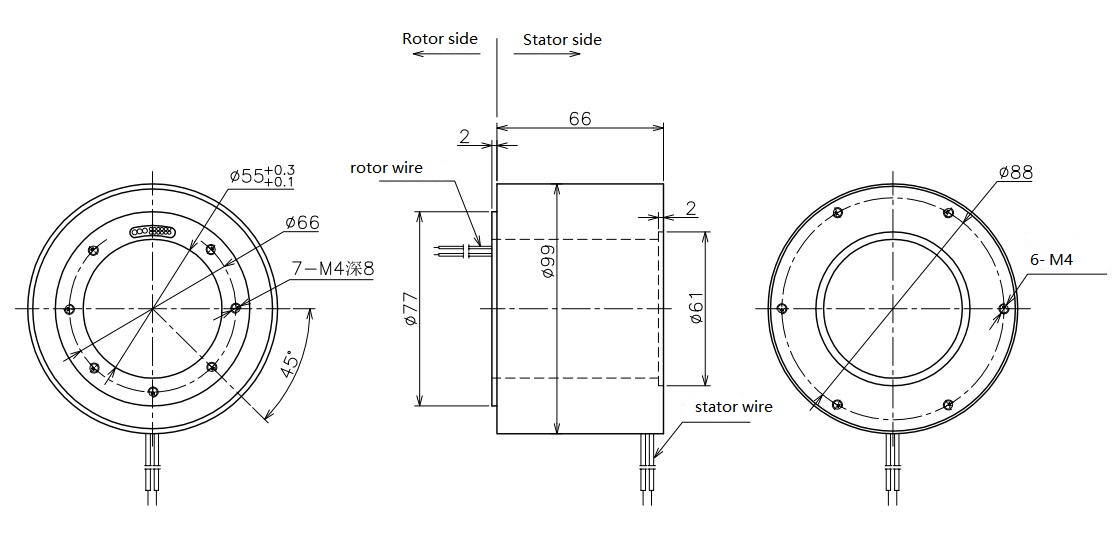

    Outline Drawing






    Why with CENO

    CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
    10MPa air rotary union 2 channel air 6 circuits 5Amp power integral slip ring

    Certification
    ISO9001,CE,RoHS,UL,Explosion-proof
    Single channel fiber optic rotary joint 6.8mm OD stainless steel

    CENO Advantage
    Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

    Service CENO provides
    24 hours,7days consultant service.
    Mass and customized production.
    Solution offerring for 360° rotation system.


    Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
