    IP51 Through Hole Slip Ring 70mm Inner Bore Hollow Shaft Rotary Union

    Ask Lasest Price
    Brand Name : CENO
    Model Number : ECN070-11P-06S
    Certification : CE,RoHS,ISO9001,UL
    Price : Negotiable
    Payment Terms : T/T,Paypal, Western Union
    Supply Ability : 500pcs per month
    Delivery Time : 1 week
    • Product Details
    • Company Profile

    IP51 Through Hole Slip Ring 70mm Inner Bore Hollow Shaft Rotary Union

    IP51 Through Hole Slip Ring 70mm Inner Bore Hollow Shaft Rotary Union


    70mm inner bore hollow shaft rotary union with 17 rings for power transmit,precious metal contatcs,used for oil well


    ECN070-11P-06S with through bore size 70 mm, it can combine with power.signal.Ethernet, USB, Control Net.CANBUS. PROFIBUS. It could also be mounted by shaft or optional flange mounting.The ECN series electrical slip rings feature a low torque design with precious metal contacts and offer low electrical noise. Includes flexible, color-coded lead wires suitable for transferring analog and digital signals.The main application including packaging machine,radar antennas,military industry,robotics etc.CENO has been engaging in the slip ring industry more than 10 years , and has accumulated abundant experience on R&D. Our engineering team has developed hundreds of special function slip ring for getting a lot of solution for difference industries.If you have any special requirements on slip ring ,just contact with us .



    Specification



    ECN070-11P-06SSpecification
    Circuits & Current6*30A,5*10A,6*2A
    Electrical noiseMax 30mΩ (50 rpm)
    Dielectric strength

    ≥1000V@50Hz (power)

    ≥300V@50Hz (signal)

    Insulation resistance

    ≥500MΩ@500VDC (power)

    ≥100MΩ@100VDC (signal)

    Operating speed0-30 rpm
    Contact materialPrecious metal
    Housing materialAluminium alloy
    Voltage0-48 VAC/VDC
    IP protection gradeIP51
    Working temperature-20°C ~ +60°C
    Through bore size70 mm

    Features


    • Through bore size 70mm
    • Shaft mounting
    • Electrical noise Max 30mΩ
    • Long lifetime
    • Low-torque

    Applications


    • Medical machine
    • Amusement Equipment
    • Meter and Instrument
    • Wind Turbine Generator
    • Food industry
    • Robotics



    Optional

    • Through hole size
    • Current & ring numbers
    • Signal type
    • IP protection grade
    • Contacts material

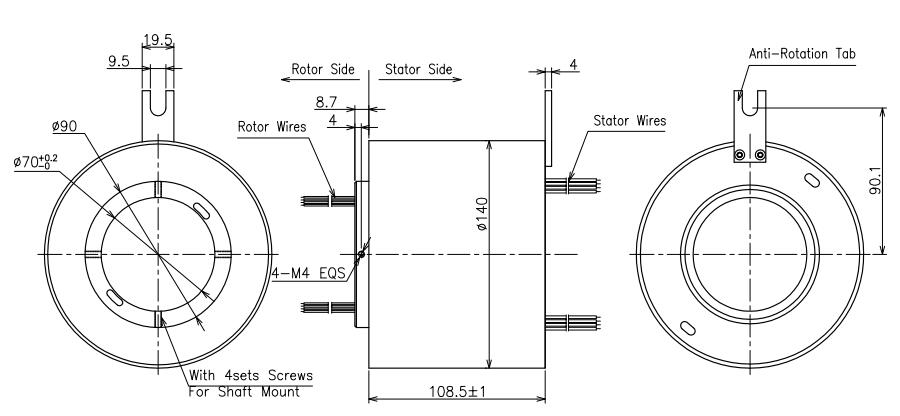

    Outline Drawing






    Why with CENO

    CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
    10MPa air rotary union 2 channel air 6 circuits 5Amp power integral slip ring

    Certification
    ISO9001,CE,RoHS,UL,Explosion-proof
    Single channel fiber optic rotary joint 6.8mm OD stainless steel

    CENO Advantage
    Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

    Service CENO provides
    24 hours,7days consultant service.
    Mass and customized production.
    Solution offerring for 360° rotation system.


    Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
