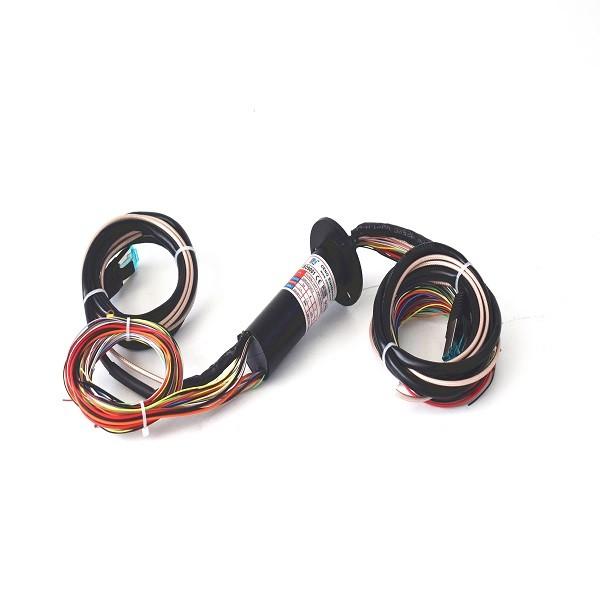

    SDI High Resolution HDMI Slip Ring Gold To Gold Contacts 200 Rpm

    Ask Lasest Price
    Brand Name : CENO
    Model Number : ACN25J-04P1-30P-01HD-01EM
    Certification : CE,RoHS,ISO9001,UL
    Price : Negotiable
    Payment Terms : T/T,Paypal, Western Union
    Supply Ability : 500pcs per month
    Delivery Time : 1 week
    • Product Details
    • Company Profile

    SDI High Resolution HDMI Slip Ring Gold To Gold Contacts 200 Rpm

    SDI High Resolution HDMI Slip Ring Gold To Gold Contacts 200 rpm


    HD-SDI high definition slip ring with gold to gold contacts,integrated 1000M Ethernet ,used for HDMI security system


    CENO high definition slip ring includes SDI high resolution and HDMI, which transmits electrical signals , high-definition video signals and high-speed digital signals to meet EMC requirements. CENO’S HD slip ring adopts domestic leading military technology, it has the advantages on transmission stability. attenuation loss of signal and ultra-low transmission fluctuation.It can support video standard of 2K @ 90Hz, no flicker screen and losing frame,Gold - gold contact point to guarantee extending working lifespan,Low contact resistance, compact size, low torque, reliable operation.Typical application including electric crane, HD security monitor,VR application, Surveillance industry.CENO also can provide different solutions according to customer's requirements,please contact with us anytime.


    Specification

    ACN25J-04P1-30P-01HD-01EMSpecification
    Circuits & Current30*2A,4*5A,1*HD-SDI,1*Gigabit Ethernet.
    Electrical noiseMax 35mΩ
    Dielectric strength

    ≥200V@50Hz (power)

    ≥100V@50Hz (signal)

    Insulation resistance

    ≥50MΩ@200VDC (power)

    ≥10MΩ@100VDC (signal)

    Operating speed0-200 rpm
    Contact materialGold to gold
    Housing materialEngineering plastic
    Voltage0-110 VAC/DC
    IP protection gradeIP40
    Working temperature-20°C ~ +60°C
    Cable length1000mm / 650mm

    Features

    • Gold to gold contacts
    • Support HD-SDI signal
    • Integrate Gigabit Ethernet
    • Long lifetime

    Applications

    • Radar antenna
    • VR application
    • Infrared photography
    • HDMI security system


    Optional

    • Circuits
    • Current & ring numbers
    • Signal type
    • IP protection grade

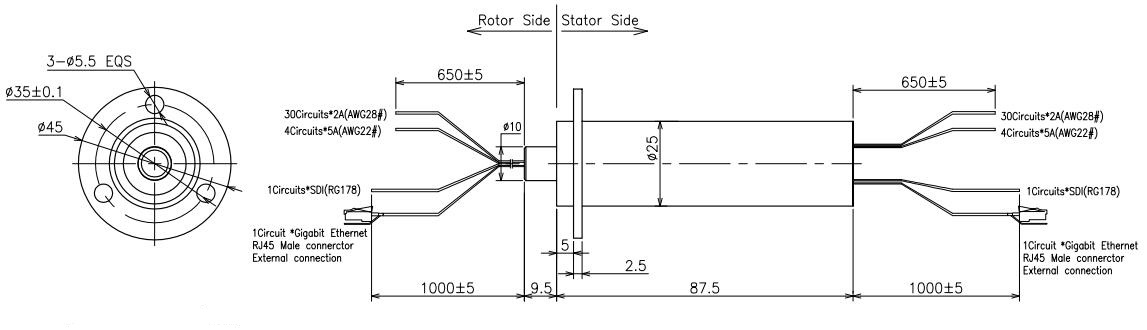

    Outline Drawing



    Why with CENO

    CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.


    Certification

    ISO9001,CE,RoHS,UL,Explosion-proof

    Single channel fiber optic rotary joint 6.8mm OD stainless steel


    CENO Advantage

    Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.


    Service CENO provides

    24 hours,7days consultant service.

    Mass and customized production.

    Solution offerring for 360° rotation system.


    Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
