    1000 M Rotary Swivel Unions , Pneumatic Rotary Union IP 54 Protection Grade

    Ask Lasest Price
    Brand Name : CENO
    Model Number : QCN0201-07P-02EG
    Certification : ISO9001,CE,RoHS
    Price : Negotiable
    Payment Terms : T/T,Paypal, Western Union
    Supply Ability : 1000pcs per month
    Delivery Time : 2 weeks
    • Product Details
    • Company Profile

    1000 M Rotary Swivel Unions , Pneumatic Rotary Union IP 54 Protection Grade

    2 Channel Air 7 Circuits Air Rotary Union With 1000M Ethernet Signal Slip Ring


    A rotary union is sometimes referred to as an electrical rotary union, rotary valve, swivel union, hydraulic coupling, pneumatic rotary union or vacuum rotary union. It transmit water,oil and some chemical liquid media e.c.t .Both air and liquid rotary union are in rotary union series.


    Features

    • Transmit100M/1000M ether net
    • Integrate various signal and power,comply with EMC
    • reliable transmitting,no package loss,no cross talk,low loss

    Applications

    • Automation equipment
    • Measuring equipment

    Optional

    • Circuit number
    • IP protection grade
    • Current rating

    Specification


    QCN0201-07P-02EG SpecificationPicture
    Current5*25A; 2*20A; 2 group 1000M Ethernet signal
    Working Temperature-20℃~+60℃
    Protection GradeIP54
    Working speed0~100rpm
    Contact materialPrecious metal
    Rating Voltage380VAC/VDC
    Lead Wire Size2.5mm² ;2.0mm²; CAT5e
    Working HumidityBelow 60%RH

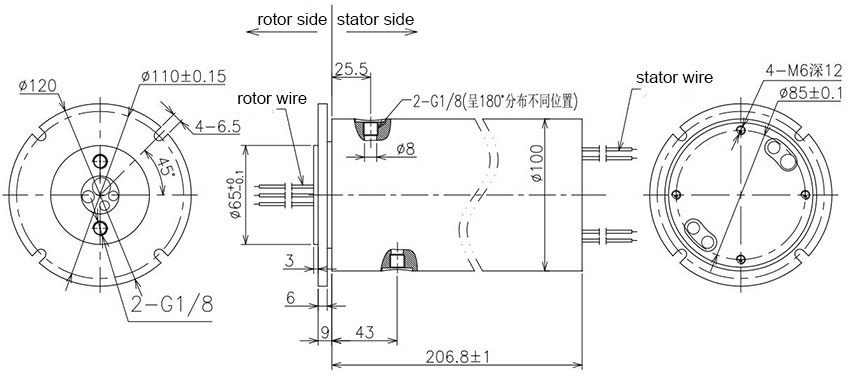

    Outline Drawing


    Why with CENO

    CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.


    Certification

    ISO9001,CE,RoHS,UL,Explosion-proof

    Single channel fiber optic rotary joint 6.8mm OD stainless steel


    CENO Advantage

    Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.


    Service CENO provides

    24 hours,7days consultant service.

    Mass and customized production.

    Solution offerring for 360° rotation system.


    Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
