    18Amp Hollow Shaft Through Hole Slip Ring 2 Circuit Transmitting Power / Special Signal

    Ask Lasest Price
    Brand Name : CENO
    Model Number : ECN038-02P-11S-JZ
    Certification : CE,RoHS,UL,ISO9001
    Price : Negotiable
    Payment Terms : T/T,Paypal,Western Union
    Supply Ability : 5000pcs month
    Delivery Time : Off the shelf
    • Product Details
    • Company Profile

    18Amp Hollow Shaft Through Hole Slip Ring 2 Circuit Transmitting Power / Special Signal

    2 Circuit 18Amp Hollow Shaft Slip Ring Transmitting Power And Special Signal


    Through hole slip ring has many install ways, the flange mounting is customed by many clients. First align the mounting holes in the flange to mounting base and install flat washers and mounting screws(NOT SUPPLIED).Securely tighten screws,then route the wiring and make the necessary connections. Do not allow the wiring to restrict free rotation of the slip ring.use 5/16 (Max diameter) screw fix the Anti-rotation tab properly.


    Feature

    • Maintenance-free
    • Long life with low wear debris
    • Low electrical noise
    • Flexible installation
    • Support power and signal transmitting
    • Bi-directional 360° rotation

    Application

    • Radar antenna
    • Welding robotics
    • Film package machine
    • Crane

    Optional

    • Circuit number
    • IP protection grade
    • Lead wire length
    • Signal type

    Specification


    ECN038-02P-11S-JZ SpecificationPicture
    Current2*18A;1*PE;4*RS422;5*RS232;3*1A
    Rating voltage380VAC
    Electrical noise≤70mΩ (50rpm)
    Dielectric strength≥1000V@50Hz
    Insulation resistance300MΩ@100VDC
    Working temperature-55℃~+75℃
    Protection gradeIP54
    Working speed0~100rpm
    Contact materialPrecious metal
    Through bore size38.1mm
    Lead wire sizeAWG17#/26#
    Lead wire length400mm

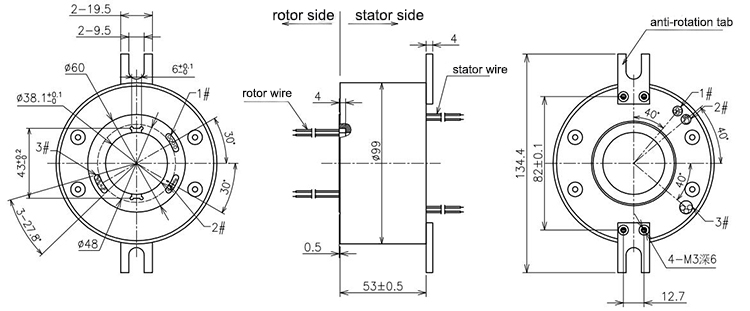

    Outline drawing



    Why with CENO

    CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.


    Certification

    ISO9001,CE,RoHS,UL,Explosion-proof


    CENO Advantage

    Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.


    Service CENO provides

    24 hours,7days consultant service.

    Mass and customized production.

    Solution offerring for 360° rotation system.


    Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
