    Low Temperature Ethernet Signal Slip Ring with multi-channels electric power

    Ask Lasest Price
    Brand Name : CENO
    Model Number : ECN012-10P3-63S-02EG
    Certification : CE,RoHS,ISO9001,UL
    Price : Negotiable
    Payment Terms : T/T,Paypal, Western Union
    Supply Ability : 500pcs per month
    Delivery Time : 1 week
    • Product Details
    • Company Profile

    Low Temperature Ethernet Signal Slip Ring with multi-channels electric power

    Low Temperature Ethernet Signal Slip Ring with multi-channels electric power


    ECN012-10P3-63S-02EG is CENO new customized low temperature slip ring with multi-channels electric power and circuits Ethernet signal, which is equipped in the machinery stating and working stably in the low temperature environment from -55°C~+70°C. Ethernet signal is an advanced communication technology and widely used in kinds of machinery, it can realize the data transmission of high speed, stably and reliable. For more information please contact us.


    Features

    • Anti-low temperature design
    • Compact structure, Stable performance & optional spec
    • Can be integrated various data
    • Install easy & Free maintenance

    Applications

    • Automatic machine
    • Turntable testing machine
    • Intelligent housing system
    • Aerospace
    • Medical equipment

    Optional

    • Circuit, Voltage, Current
    • Signals and data
    • Contact / Housing Materials
    • IP Grade & outlet wire
    • Working speed & temperature


    Specification

    ECN012-10P3-63S-02EG

    Specification
    Current & Circuits10 *15A; 60 * signal; 2 * Ethernet Signal
    Rating Voltage0 ~ 330 VAC/VDC
    Dielectric strength≥1000VAC@50Hz; ≥300VAC@50Hz
    Isolation resistance≥500MΩ@500VDC; ≥100MΩ@300VDC
    Contact resistance≤30mΩ (50rpm)
    Contact materialPrecious Metal
    Housing materialAluminum Alloy
    Working temperature-40°C~+55°C; -55°C~+70°C
    Working humidity60 %RH
    IP protection gradeIP51
    Operating speed0 ~ 300 rpm
    Lead wire sizeTin coated Teflon@UL; CAT6
    Lead wire lengthAs customized
    InstallationFlange installation
    Inner diameter12.7mm
    Working life5 Million Rotation

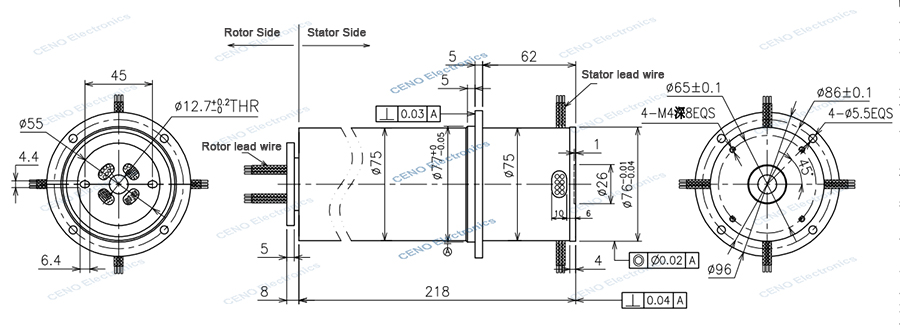

    Outline drawing



    Application


    Why with CENO

    CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

    10MPa air rotary union 2 channel air 6 circuits 5Amp power integral slip ring


    Certification

    ISO9001,CE,RoHS,UL,Explosion-proof

    Single channel fiber optic rotary joint 6.8mm OD stainless steel


    CENO Advantage

    Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.


    Service CENO provides

    24 hours,7days consultant service.

    Mass and customized production.

    Solution offerring for 360° rotation system.


    Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
