    Electric power waterproof slip ring with ip66 option conductive rotary joint

    Ask Lasest Price
    Brand Name : CENO
    Model Number : ECN000-07P2-IP66
    Certification : CE,RoHS,UL,ISO9001
    Price : Negotiable
    Payment Terms : T/T,Paypal,Western Union, L/C
    Supply Ability : 10000pcs month
    Delivery Time : Off the shelf
    • Product Details
    • Company Profile

    Electric power waterproof slip ring with ip66 option conductive rotary joint

    Electric power waterproof slip ring with ip66 option conductive rotary joint

    ECN000-07P2-IP66 is CENO water-proof slip ring with IP66, which is customized for the high humidity environment. Both rotor side and stator side are equipped with aviation plug to ensure high protection grade and stable transmission for the electric power or signals. In CENO customized series slip ring, most parameters are option, such as circuits, current and voltage can be customized for different application and special equipment. For more information please contact us.

    Features

    • High protection grade and option IP65,IP66,IP67,IP68
    • Integrate structure easy install
    • Can be integrated various data
    • Install easy & Free maintenance


    Applications

    • Automatic machine
    • Boats and ship machinery
    • Offshore equipment
    • Drilling platform
    • Medical equipment


    Optional

    • Circuit, Voltage, Current
    • Outlet wire and style
    • Contact / Housing Materials
    • IP Grade
    • Working speed & temperature



    Specification

    ECN000-07P2-IP66

    Specification
    Current & Circuits7 circuits * 10A
    Rating Voltage0 ~ 380 VAC/VDC
    Dielectric strength≥1000VAC@50Hz
    Isolation resistance≥500MΩ@500VDC
    Electrical noise, max30mΩ (50rpm)
    Working temperature-20°C~+80°C
    Working humidity60 %RH
    Protection GradeIP66
    Operating speed0 ~ 100rpm
    Outer diameterØ115mm
    Contact materialPrecious Metal
    Housing materialStainless steel + Aluminum alloy
    Lead wire lengthRotor: Aviation plug; Stator: Aviation plug

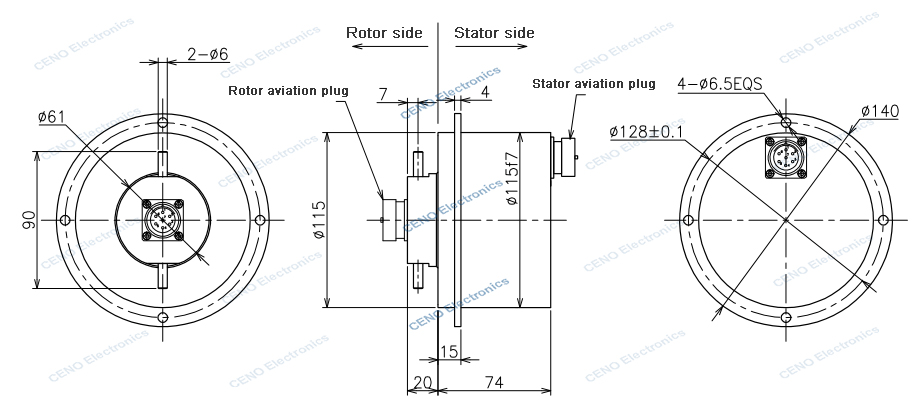

    Outline drawing


    Our Service
    1. Reply inquiry in 24 hours.
    2. Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.
    3. Answer your question detailed.
    4. Solved the problem with you during using our products.
    5. Samples will be offered to you for our future cooperation.

    FAQ

    1. What do we do?
    We focus on developing, designing, manufacturing high quality sliprings, and offer various solutions for rotating systems.

    2. How long have we been in the business?
    CENO established slip rings business since 2009. We have thousands of customers accepted our products or services.

    3. What is a slip ring?
    A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.

    4. How do I choose a slip ring?
    Proper selection of a slip ring solution requires details about your application’s operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. A good place to start your search is with our standard slip rings. If you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started.

    5. Do you offer custom slip rings?
    Yes, if you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started. Our engineers will come up with perfect solution for your needs.

    Why with CENO
    CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

    Certification
    ISO9001,CE,RoHS,UL,Explosion-proof

    CENO Advantage
    Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

    Service CENO provides
    24 hours,7days consultant service.
    Mass and customized production.
    Solution offerring for 360° rotation system.

    Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
