    Customized Slip Ring Combined Electric Power And Ethernet Signal For Robot Arm

    Ask Lasest Price
    Brand Name : CENO
    Model Number : ECN000-03P3-11S-02EG
    Certification : CE,RoHS,ISO9001,UL
    Price : Negotiable
    Payment Terms : T/T,Paypal, Western Union
    Supply Ability : 500pcs per month
    Delivery Time : 1 week
    • Product Details
    • Company Profile

    Customized Slip Ring Combined Electric Power And Ethernet Signal For Robot Arm

    Customized slip ring combined electric power and ethernet signal for robot arm


    ECN000-03P3-11S-02EG is CENO one customized slip ring with circuits electric power, signal and Ethernet signals. Flat slot and flange design for easy and tight firm installation. Ethernet technology is the most commonly used network technology today, which provide GBPS of communication bandwidth for internet and communication systems, that realize low loss, no packet loss and ultra-long distance transmission with stable performance. For more information please contact us.


    Features

    • Combine Ethernet & Electric
    • High stable performance and strong reliability & widely usage
    • Can be integrated various data
    • Install easy & Free maintenance

    Applications

    • Automatic equipment
    • Communication system
    • Intelligent housing system
    • Industry robot arms
    • Medical equipment

    Optional

    • Circuit, Voltage, Current
    • Signals and data
    • Contact / Housing Materials
    • Protection grade
    • Working speed


    Specification

    ECN000-03P3-11S-02EG

    Specification
    Current & Circuits3 circuits * 15A; 5 circuits * Signal; 3 circuits * RS422 Signal; 2 group * Gigabit Ethernet
    Rating Voltage0 ~ 220 VAC/VDC
    Dielectric strength≥1000VAC@50Hz; ≥300VAC@50Hz
    Isolation resistance≥500MΩ@500VDC; ≥100MΩ@100VDC
    Electrical noise, max30mΩ (50rpm)
    Working temperature-20°C~+60°C
    Working humidity60 %RH
    Protection GradeIP51
    Operating speed0 ~ 100rpm
    Outer diameterØ86mm
    Contact materialPrecious Metal
    Housing materialAluminum alloy
    Lead wire size

    As customized

    Lead wire lengthAs customized

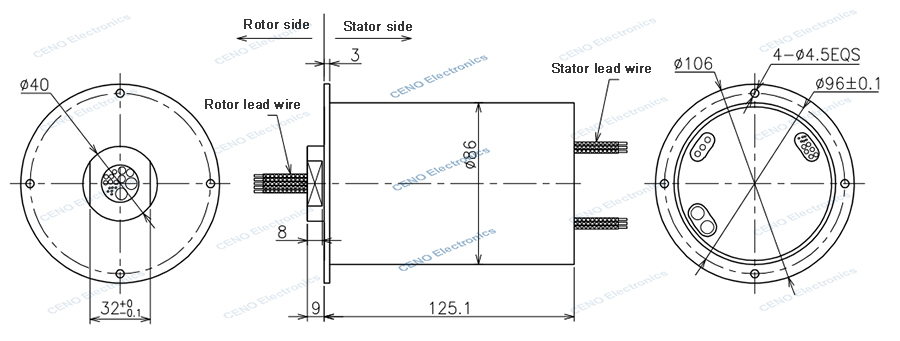

    Outline drawing



    Application


    Why with CENO

    CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

    10MPa air rotary union 2 channel air 6 circuits 5Amp power integral slip ring


    Certification

    ISO9001,CE,RoHS,UL,Explosion-proof

    Single channel fiber optic rotary joint 6.8mm OD stainless steel


    CENO Advantage

    Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.


    Service CENO provides

    24 hours,7days consultant service.

    Mass and customized production.

    Solution offerring for 360° rotation system.


    Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
