    Ethernet Slip Ring With Electric Power Signal And Ethernet For Industrial System

    Ask Lasest Price
    Brand Name : CENO
    Model Number : ECN000-03P4-06P-08S-04EM
    Certification : CE,RoHS,ISO9001,UL
    Price : Negotiable
    Payment Terms : T/T,Paypal, Western Union
    Supply Ability : 500pcs per month
    Delivery Time : 1 week
    • Product Details
    • Company Profile

    Ethernet Slip Ring With Electric Power Signal And Ethernet For Industrial System

    Ethernet slip ring with electric power signal and Ethernet for industrial system


    ECN000-03P4-06P-08S-04EM is CENO new customized Ethernet signal slip ring with circuits electric power and Ethernet / RS422 signals for industry automation system. Industry Ethernet signal is an Ethernet technology used in the field of industrial control system. It’s technically compatible with commercial Ethernet, but the actual products and applications are completely different, Industrial Ethernet features high quality material, strength and timeliness should meet the needs of industrial sites.


    Features

    • High communication rate, Max support 1000Mbps
    • Various connector type available
    • Excellent contact material ensure ultra-long service life

    Applications

    • Automatic machine
    • Communication system
    • Industrial system
    • Security & protection grade
    • Medical equipment

    Optional

    • Circuit, Voltage, Current
    • Connectors / IP Grade
    • Contact / Housing Materials
    • Position of wire outlet
    • Working speed & temperature


    Specification

    ECN000-03P4-06P-08S-04EM

    Specification
    Current & Circuits9 circuits * Electric power; 2 * signal; 4 * Ethernet signal
    Rating Voltage0 ~ 220 VAC/VDC
    Dielectric strength≥1000VAC@50Hz; ≥500VAC@50Hz
    Isolation resistance≥500MΩ@500VDC; ≥100MΩ@100VDC
    Working temperature-20°C~+60°C
    Working humidity60 %RH
    IP protection gradeIP51
    Operating speed0~300rpm
    Outer diameterØ86mm
    Contact materialPrecious Metal / gold to gold
    Housing materialAluminum alloy
    Lead wire sizeAs customized
    Lead wire lengthAs customized

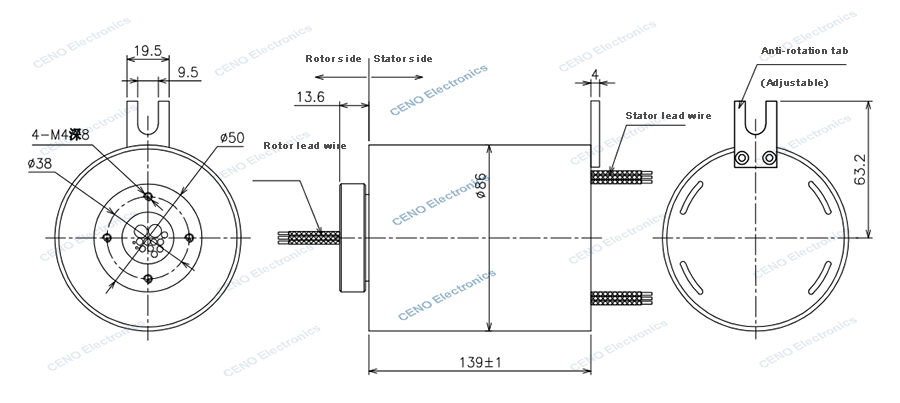

    Outline drawing



    Application


    Why with CENO

    CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

    10MPa air rotary union 2 channel air 6 circuits 5Amp power integral slip ring


    Certification

    ISO9001,CE,RoHS,UL,Explosion-proof

    Single channel fiber optic rotary joint 6.8mm OD stainless steel


    CENO Advantage

    Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.


    Service CENO provides

    24 hours,7days consultant service.

    Mass and customized production.

    Solution offerring for 360° rotation system.


    Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
