    Water proof slip ring with IP66 and electric power signal for Automatic system

    Ask Lasest Price
    Brand Name : CENO
    Model Number : ECN000-06P3-07S-IP66
    Certification : CE,RoHS,UL,ISO9001
    Price : Negotiable
    Payment Terms : T/T,Paypal,Western Union, L/C
    Supply Ability : 10000pcs month
    Delivery Time : Off the shelf
    • Product Details
    • Company Profile

    Water proof slip ring with IP66 and electric power signal for Automatic system

    Water proof slip ring with IP66 and electric power signal for Automatic system


    ECN000-06P3-07S-IP66 is CENO waterproof slip ring with IP66 protection grade and flange installation for automatic industrial system. Modern manufacturing industries demand high performance applications able to deliver greater productivity, excellent parts quality and lower operation costs in an increasingly environmentally conscious world. CENO’s expert engineers have many years’ experience of combine electric, hydraulic & hybrid technologies to provide you with solutions precisely match your requirements.



    Features

    • High protection grade and option IP66, IP67 or IP68
    • Be able to bear high voltage / pressure and anti-corrosion
    • Quick and easy to install

    Applications

    • Automatic industrial system
    • Turntable platform
    • Industrial robot arms
    • Test equipment
    • Medical equipment

    Optional

    • Circuit, Voltage, Current
    • Connectors / IP Grade
    • Contact / Housing Materials
    • Position of wire outlet
    • Working speed & temperature


    Specification

    ECN000-06P3-07S-IP66Specification
    Current & Circuits6 circuits * 12A; 7 circuits * 100mA
    Rating Voltage0 ~ 72 VAC/VDC
    Dielectric strength≥500VAC@50Hz; ≥300VAC@50Hz
    Isolation resistance≥500MΩ@500VDC; ≥100MΩ@300VDC
    Electrical noiseMax 30mΩ (50rpm)
    Working temperature-20°C~+60°C
    Working humidity60 %RH
    IP protection gradeIP66
    Operating speed0~20rpm
    Outer diameterØ60mm
    Contact materialPrecious Metal
    Housing materialAluminum alloy
    Lead wire sizeAs customized
    Lead wire lengthAs customized

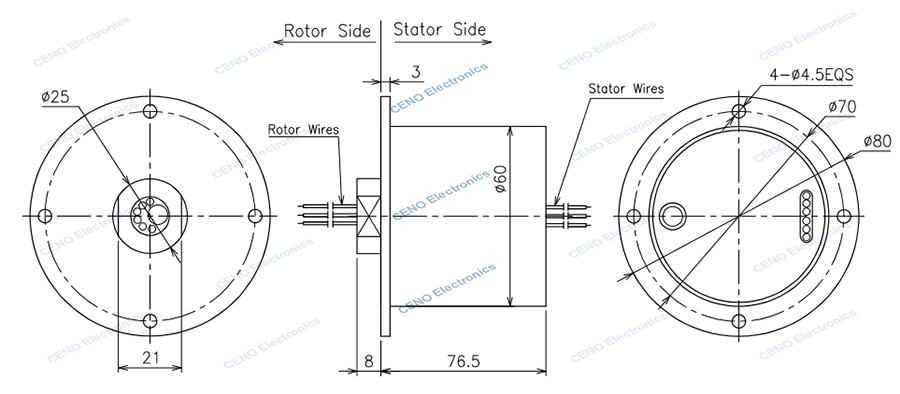

    Outline drawing


    Our Service
    1. Reply inquiry in 24 hours.
    2. Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.
    3. Answer your question detailed.
    4. Solved the problem with you during using our products.
    5. Samples will be offered to you for our future cooperation.

    FAQ

    1. What do we do?
    We focus on developing, designing, manufacturing high quality sliprings, and offer various solutions for rotating systems.

    2. How long have we been in the business?
    CENO established slip rings business since 2009. We have thousands of customers accepted our products or services.

    3. What is a slip ring?
    A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.

    4. How do I choose a slip ring?
    Proper selection of a slip ring solution requires details about your application’s operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. A good place to start your search is with our standard slip rings. If you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started.

    5. Do you offer custom slip rings?
    Yes, if you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started. Our engineers will come up with perfect solution for your needs.

    Why with CENO
    CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

    Certification
    ISO9001,CE,RoHS,UL,Explosion-proof

    CENO Advantage
    Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

    Service CENO provides
    24 hours,7days consultant service.
    Mass and customized production.
    Solution offerring for 360° rotation system.

    Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
