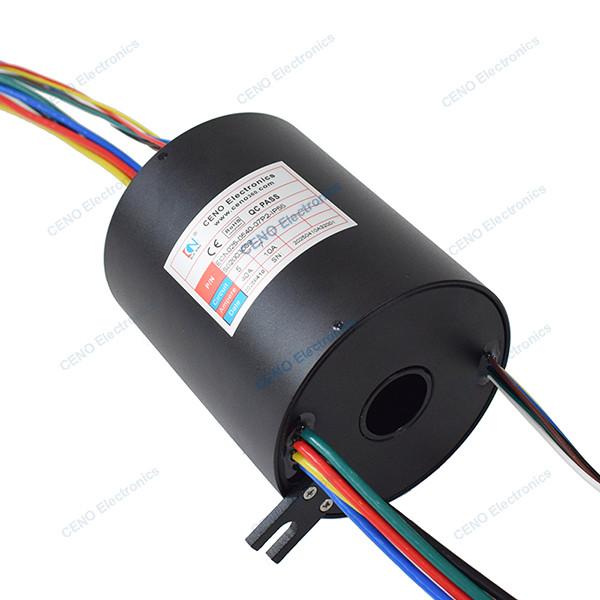

    Through bore slip ring configured electric power rotary joint for industry

    Ask Lasest Price
    Brand Name : CENO
    Model Number : ECN025-0540-07P2-IP55
    Certification : CE,RoHS,UL,ISO9001
    Price : Negotiable
    Payment Terms : T/T,Paypal,Western Union, L/C
    Supply Ability : 10000pcs month
    Delivery Time : Off the shelf
    • Product Details
    • Company Profile

    Through bore slip ring configured electric power rotary joint for industry

    Through bore slip ring configured electric power rotary joint for industry

    ECN025-0540-07P2-IP55 is CENO one through bore slip ring with electric power for industrial system. There are many series slip rings on CENO product line, through bore slip ring designs are available for harsh conditions often that are configured for electrical power, signal or both, and these designs can be integrated with other products, such as forjs, radio frequency union or fluid rotary joint. parameters of these can be customized for different application requirements. For more information please contact us.


    Features

    • Aluminum alloy housing shell provided for rugged environment
    • Different current, signal transfer into one single unit. Integration of cable assemblies / connectors
    • Adjustable terminal easy install

    Applications

    • Industrial robot arm
    • Port crane
    • Rotating plat
    • Medical equipment
    • Inspection equipment
    • Rotary machines

    Optional

    • Circuit, Voltage, Current
    • Connectors / IP Grade
    • Contact / Housing Materials
    • Position of wire outlet
    • Protection grate
    • Working speed & temperature


    Specification

    ECN025-0540-07P2-IP55

    Specification
    Current & Circuits5 circuits * 40A;7 circuits * 10A
    Rating Voltage0 ~ 380 VAC/VDC
    Dielectric strength≥1000VAC@50Hz
    Isolation resistance≥500MΩ@500VDC
    Electrical noiseMax 70mΩ (50rpm)
    Working temperature-20°C~+60°C
    Working humidity60 %RH
    IP protection gradeIP55
    Operating speed0~300rpm
    Outer diameterØ99mm
    Contact materialPrecious Metal
    Housing materialAluminum alloy
    Lead wire sizeAs customized
    Lead wire lengthAs customized
    InstallationRotor side fixed on main shaft with screws

    Outline drawing




    Our Service
    1. Reply inquiry in 24 hours.
    2. Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.
    3. Answer your question detailed.
    4. Solved the problem with you during using our products.
    5. Samples will be offered to you for our future cooperation.

    FAQ

    1. What do we do?
    We focus on developing, designing, manufacturing high quality sliprings, and offer various solutions for rotating systems.

    2. How long have we been in the business?
    CENO established slip rings business since 2009. We have thousands of customers accepted our products or services.

    3. What is a slip ring?
    A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.

    4. How do I choose a slip ring?
    Proper selection of a slip ring solution requires details about your application’s operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. A good place to start your search is with our standard slip rings. If you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started.

    5. Do you offer custom slip rings?
    Yes, if you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started. Our engineers will come up with perfect solution for your needs.

    Why with CENO
    CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

    Certification
    ISO9001,CE,RoHS,UL,Explosion-proof

    CENO Advantage
    Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

    Service CENO provides
    24 hours,7days consultant service.
    Mass and customized production.
    Solution offerring for 360° rotation system.

    Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
