    Low Temperature Slip Ring with Through Hole ID38.1mm For Polar region crane

    Ask Lasest Price
    Brand Name : CENO
    Model Number : ECN038-04P4-14S
    Certification : CE,RoHS,ISO9001,UL
    Price : Negotiable
    Payment Terms : T/T,Paypal, Western Union
    Supply Ability : 500pcs per month
    Delivery Time : 1 week
    • Product Details
    • Company Profile

    Low Temperature Slip Ring with Through Hole ID38.1mm For Polar region crane

    Low Temperature Slip Ring with Through Hole ID38.1mm For Polar region crane


    ECN038-04P4-14S is CENO new function slip ring which can continuous rotating and transferring signal and electric power stably from stator side to rotor side within temperature -55°C~+60°C, we often call this kind of slip rings as low temperature slip ring at CENO. All materials are selected to ensure slip rings going well and keep high quality in a long time or many years. CENO have produce and customized slip ring for our customers nearly 5000 kinds, for more information please contact CENO experts.



    Specification

    ECN038-04P4-14S

    Specification
    Current & Circuits4 circuits * 20A; 14 circuits * Signal
    Rating Voltage0-380VAC/VDC
    Dielectric strength≥1000VAC@50Hz
    Isolation resistance≥500MΩ@500VDC
    Contact resistance≤70mΩ (50rpm)
    Contact materialPrecious Metal
    Housing materialAluminum alloy
    Working temperature-55°C~+60°C; -55°C~+70°C
    Working humidity60 %RH
    IP protection gradeIP54
    Operating speed0~300rpm
    Inner boreØ38.1mm
    Outer diameterØ101mm
    Lead wire size

    AWG17# Tin coated Teflon® UL

    AWG26# Tin coated Teflon® UL

    Lead wire lengthRotor:400mm; Stator:400mm
    Installation

    Rotor side fixed by screw holes

    Stator side fixed by ear mechanical parts


    Features

    • High quality materials
    • Optional circuits, and working temperature or speed
    • Can be integrated various data
    • Install easy & Free maintenance

    Applications

    • Military equipment
    • Turntable testing machine
    • Polar region crane
    • Elevator
    • Airborne equipment

    Optional

    • Circuit, Voltage, Current
    • Shape and Dimensions
    • Contact / Housing Materials
    • Protection grade
    • Working speed & temperature

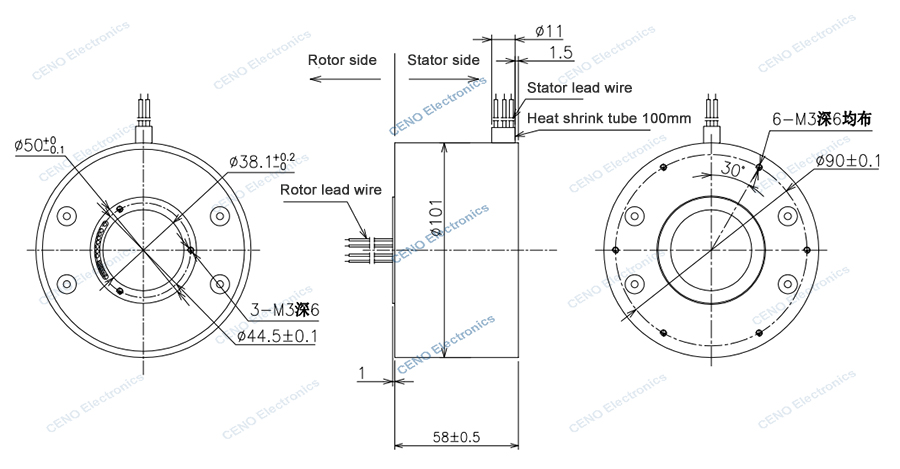

    Outline Drawing






    Why with CENO

    CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
    10MPa air rotary union 2 channel air 6 circuits 5Amp power integral slip ring

    Certification
    ISO9001,CE,RoHS,UL,Explosion-proof
    Single channel fiber optic rotary joint 6.8mm OD stainless steel

    CENO Advantage
    Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

    Service CENO provides
    24 hours,7days consultant service.
    Mass and customized production.
    Solution offerring for 360° rotation system.


    Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
