    Miniature HD-SDI Signal Slip Ring Capsule with OD 16mm For Video Monitoring

    Ask Lasest Price
    Brand Name : CENO
    Model Number : ACN-24S
    Certification : CE,RoHS,UL,ISO9001
    Price : Negotiable
    Payment Terms : T/T,Paypal,Western Union, L/C
    Supply Ability : 10000pcs month
    Delivery Time : Off the shelf
    • Product Details
    • Company Profile

    Miniature HD-SDI Signal Slip Ring Capsule with OD 16mm For Video Monitoring

    Product Description:

    Miniature HD-SDI Signal Slip Ring Capsule with OD 16mm For Video Monitoring

    ACN-24S is CENO new HDMI slip ring which combine 1 circuit HD-SDI signal, 1 circuit pitch motor signal with 1 circuit roll motor signal. CENO HDMI Slip Ring features military grade surface treatment technology, precious metal contact materials. Can combine kinds of data or signals such as Ethernet, USB, RS, CAN-Bus, RF or FORJs as customer special application and working environment. Often applied to the Radio sound, Low voltage differential SCSI etc, For more information please contact us.


    Features:

    Features

    • IP Grade IP51-1P68 optional
    • Working temperature optional
    • Can be integrated various data
    • Circuits 1-200 optional
    • Install easy & Free maintenance

    Applications

    • Video monitoring
    • Traffic system
    • Radar antenna
    • Turn table
    • Robot

    Optional

    • Circuit, Voltage, Current
    • Integrate signal / data
    • Contact / Housing Materials
    • Lead wire size / length
    • Working speed

    Technical Parameters:

    ACN-24S

    Specification
    Current & Circuits1 circuit * HD-SDI (1080P@30Hz); 1 circuit * Signal; 1 circuit* Pitch motor Signal; 1 circuit * Roll motor signal
    Rating Voltage0-220VAC/VDC
    Dielectric strength≥500VAC@50Hz
    Isolation resistance≥50MΩ@500VDC
    Contact resistance≤35mΩ (50rpm)
    Contact materialGold to Gold
    Housing materialAluminum Alloy
    Working temperature-20°C~+60°C
    Working humidity60 %RH
    IP protection gradeIP54
    Operating speed0~300rpm
    Outer diameterØ16mm
    Lead wire sizeRF 0.81 Coaxial wire; Ø0.65-AWG28
    Lead wire lengthRotor: 250±5 mm; Stator: 250±5 mm

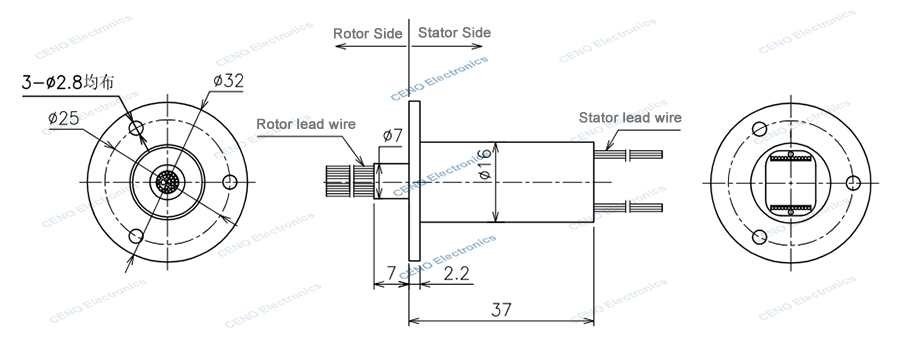

    Outline drawing


    More informations:


    Today we're going to talk about slip rings - but don't worry, it's not as boring as it sounds. We're going to focus on the HDMI Miniature Slip Ring Capsule, and why it's such an amazing innovation for medical machinery applications.

    First off, let's break it down. A slip ring is an electrical device that allows the transmission of power and signals between rotating and stationary systems. It's essentially like a rotating connector that enables electronics to move around without getting tangled up in wires or losing power.
    Now, imagine you're in a hospital and a doctor needs to use a medical device that's attached to wires. The wires can get tangled, limiting the movement of the doctor and potentially harming the patient. But with a slip ring like the HDMI Miniature Slip Ring Capsule, the doctor can move around freely while the device stays securely attached and powered.
    And speaking of the HDMI Miniature Slip Ring Capsule, let's talk specifics. It's called "miniature" for a reason - it's small and compact, meaning it won't take up much room in an already crowded hospital or medical facility. And despite its size, it's incredibly powerful - it can transmit HDMI video signals and electrical power, making it perfect for medical equipment that requires both.
    But don't just take my word for it - the HDMI Miniature Slip Ring Capsule has already been used successfully in medical devices like endoscopes and surgical robots. It's made operations smoother and more efficient, and has even helped doctors perform procedures that weren't possible before.
    So if you're still not convinced that slip rings are cool, just remember that they're making medical advancements possible. And who doesn't love a good medical breakthrough?
