    Antenna Slip Ring with 4 Channels SMA-F Radio Frequency Rotary Joints

    Ask Lasest Price
    Brand Name : CENO
    Model Number : RCN0404A
    Certification : ISO9001,CE,RoHS,UL
    Price : Negotiable
    Payment Terms : T/T,Paypal,, Western Union
    Supply Ability : 500pcs per month
    Delivery Time : 1 week
    • Product Details
    • Company Profile

    Antenna Slip Ring with 4 Channels SMA-F Radio Frequency Rotary Joints

    Antenna Slip Ring with 4 Channels SMA-F Radio Frequency Rotary Joints


    RCN0404A is CENO new product 4-channels RF Rotary Joints which belongs to RCN system products. This series of slip rings is a non-standard customized series, designed for the radar industry. RF Rotary Joints can be integrated current and signals. The frequency of the joint ranges from DC to 50GHz,and the number of channels range from single to five. RF Rotary Joints have stable performance, meet EMC electromagnetic compatibility requirements, and widely used in various radar antenna systems.


    Features

    • Channels can be up 5RF
    • Can be integrated signal / date for variety of functions
    • Frequency range DC-50GHz & Channels1-5 is option

    Applications

    • Radar antenna
    • Air traffic control
    • Electronic warfare system
    • Space defence
    • Photoelectric pod

    Optional

    • Channel number
    • Frequency range
    • Interface type
    • Working temperature
    • Working speed

    Specification

    RCN0404A

    Specification
    ChannelCH1CH2CH3CH4
    InterfaceSMA-F(50Ω)SMA-F(50Ω)SMA-F(50Ω)SMA-F(50Ω)
    Frequency rangeDC-4GHzDC-4GHzDC-4GHzDC-4GHz
    StyleIIII
    Average power50W10W10W10W
    VSWR, max1.31.51.51.5
    VSWR WOW, max0.10.10.10.1
    Insertion Loss, max1.3dB1dB1dB1dB
    Insertion loss,wow,max0.1dB0.1dB0.1dB0.1dB
    Insulation, min55dB55dB55dB55dB
    Phase stable, max1deg4deg4deg4deg
    Working speed0~30rpm
    Service life,Min5x106 Rotation
    Torque, Max0.8Nm@normal temperature
    MaterialsAluminum Alloy
    Surface treatmentElectric Conductive Oxidation
    Net Weight700g
    IP GradeIP60

    Working Temperature

    Storage Temperature

    -40℃~+70℃

    -50℃~+70℃

    Working Humidity95%

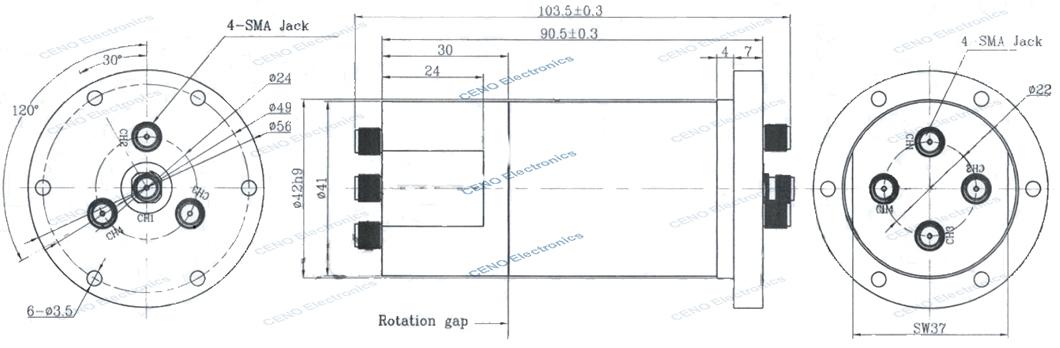

    Outline drawing






    Why with CENO

    CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.


    Certification

    ISO9001,CE,RoHS,UL,Explosion-proof


    CENO Advantage

    Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.


    Service CENO provides

    24 hours,7days consultant service.

    Mass and customized production.

    Solution offerring for 360° rotation system.


    Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
