    Integrate Encoder Slip Ring with K-type Thermo couple For Industrial System

    Ask Lasest Price
    Brand Name : CENO
    Model Number : ECN050-14S-01EM-IP65
    Certification : CE,RoHS,ISO9001,UL
    Price : Negotiable
    Payment Terms : T/T,Paypal, Western Union
    Supply Ability : 1000pcs per month
    Delivery Time : 1 week
    • Product Details
    • Company Profile

    Integrate Encoder Slip Ring with K-type Thermo couple For Industrial System

    Integrate Encoder Slip Ring with K-type Thermo couple For Industrial System


    ECN050-14S-01EM-IP65 is CENO low temperature slip ring with 3 group K-type thermo couple, 1 group Encoder and 1 circuit 100M Ethernet, which is designed for construction machinery specially adjusted fro harsh working conditions. In order to achieve the corresponding level of high/low temperature resistance, these slip rings are stricter than ordinary slip ring in material selection such as shells, bearings, brushes. with stable performance and ageing resistance, For more information please contact us.


    Features

    • Classic through bore design
    • Anti-low temperature design for Temperature -40°C~+60°C
    • Can be integrated various signal / data are application

    Applications

    • Polar Region Crane
    • Mountain areas
    • Communication systems
    • Turbine
    • Robot

    Optional

    • Circuit, Voltage, Current
    • Integrate signal / data
    • Contact / Housing Materials
    • Shape and Dimensions
    • Working speed


    Specification

    ECN050-14S-01EM-IP65

    Specification
    Current & Circuits3 group * K type thermo couple; 1 group * Encoder signal; 1 group * 100M Ethernet
    Rating Voltage0-24VAC/VDC
    Dielectric strength≥300VAC@50Hz
    Isolation resistance≥100MΩ@300VDC
    Contact resistance≤30mΩ (50rpm)
    Contact materialPrecious Metal
    Housing materialAluminum alloy
    Working temperature-40°C~+60°C
    Working humidity60 %RH
    IP protection gradeIP65
    Operating speed0~300rpm
    Inner boreØ50mm
    Outer diameterØ119mm
    Lead wire sizeK type thermocouple wire; 8 core twisted shielded wire; CAT5e
    Lead wire lengthRotor:300mm; Stator:300mm
    InstallationFix up stator side with anti-rotation side

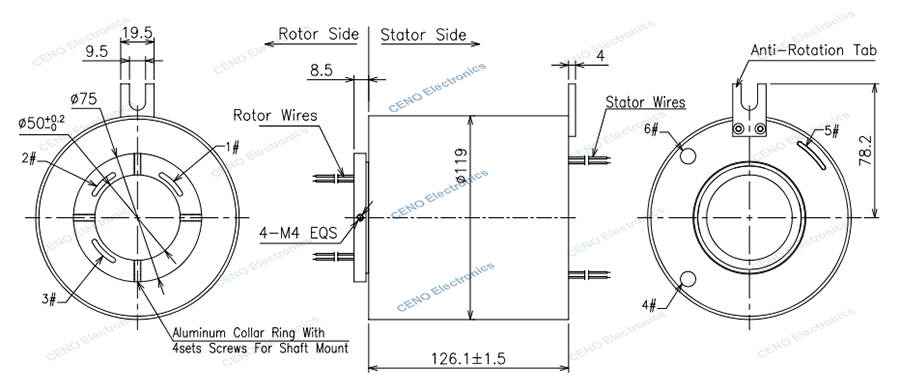

    Outline drawing



    CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.


    Why with CENO


    Certification

    ISO9001,CE,RoHS,UL,Explosion-proof

    Single channel fiber optic rotary joint 6.8mm OD stainless steel


    CENO Advantage

    Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.


    Service CENO provides

    24 hours,7days consultant service.

    Mass and customized production.

    Solution offerring for 360° rotation system.


    Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
