    IP67 Waterproof Slip Ring With Hollow Shaft For Boats And Ship Machinery

    Ask Lasest Price
    Brand Name : CENO
    Model Number : ECN160-19P-02EM-IP67
    Certification : CE,RoHS,UL,ISO9001
    Price : Negotiable
    Payment Terms : T/T,Paypal,Western Union, L/C
    Supply Ability : 10000pcs month
    Delivery Time : Off the shelf
    • Product Details
    • Company Profile

    IP67 Waterproof Slip Ring With Hollow Shaft For Boats And Ship Machinery

    IP67 Waterproof slip ring with hollow shaft for boats and ship machinery

    ECN160-19P-02EM-IP67 is CENO Waterproof slip ring for Boats and Ship Machinery. Waterproof slip ring, also known as waterproof conductive slip ring, is a specially designed rotary connector. The principle of waterproof slip ring involves its internal structure and design, which enables it to stably transmit power, signals, data and other information such as optical fiber and radio frequency in harsh environments such as moisture, corrosion and underwater. For more information please contact us.


    Features

    • Protection grade can be to IP68 for special application & machine
    • Through hole design and combine Ethernet signals
    • Integrated structure easy install


    Applications

    • Automatic machine
    • Boats & Ship Machinery
    • Offshore equipment
    • Filling machinery
    • Medical equipment


    Optional

    • Circuits, Voltage, Current
    • Integrate Signals and data
    • Contact / Housing Materials
    • IP Grade
    • Speed




    Specification

    ECN160-19P-02EM-IP67

    Specification
    Current & Circuits2 circuits * 50A; 4circuits*32A; 4circuits * 25A; 9 circuits * 16A; 2 Groups * 100M Ethernet
    Rating Voltage0~400VAC / VDC
    Dielectric strength≥1200VAC@50Hz; ≥300VAC@50Hz
    Isolation resistance≥500MΩ@500VDC; ≥300MΩ@300VDC
    Electrical Noise≤ 30mΩ (50rpm)
    IP GradeIP67
    Working humidity≤ 60%
    Working temperature-20℃ ~ +80℃
    Inner diameterØ160mm
    Operating speed0~50 rpm
    Working Torque≤ 30N*m
    Contact materialPrecious Metal / Gold to gold
    Housing materialAluminum Alloy + Stainless steel
    Lead wire sizeShielded wire; CAT5e
    Lead wire lengthRotor side: 5000mm; Stator side: 5000mm
    Rotation WayFix up stator side with anti-rotation side shaft drives rotor running

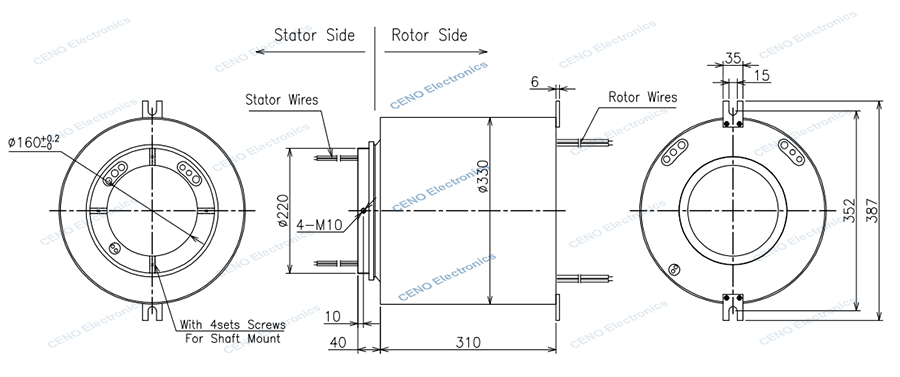

    Outline drawing



    Our Service
    1. Reply inquiry in 24 hours.
    2. Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.
    3. Answer your question detailed.
    4. Solved the problem with you during using our products.
    5. Samples will be offered to you for our future cooperation.

    FAQ

    1. What do we do?
    We focus on developing, designing, manufacturing high quality sliprings, and offer various solutions for rotating systems.

    2. How long have we been in the business?
    CENO established slip rings business since 2009. We have thousands of customers accepted our products or services.

    3. What is a slip ring?
    A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.

    4. How do I choose a slip ring?
    Proper selection of a slip ring solution requires details about your application’s operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. A good place to start your search is with our standard slip rings. If you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started.

    5. Do you offer custom slip rings?
    Yes, if you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started. Our engineers will come up with perfect solution for your needs.

    Why with CENO
    CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

    Certification
    ISO9001,CE,RoHS,UL,Explosion-proof

    CENO Advantage
    Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

    Service CENO provides
    24 hours,7days consultant service.
    Mass and customized production.
    Solution offerring for 360° rotation system.

    Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
