    Conductive Slip Ring With Through Bore Rotary Electrical Connectors For Industry

    Ask Lasest Price
    Brand Name : CENO
    Model Number : ECN060-18P1
    Certification : CE,RoHS,UL,ISO9001
    Price : Negotiable
    Payment Terms : T/T,Paypal,Western Union, L/C
    Supply Ability : 10000pcs month
    Delivery Time : Off the shelf
    • Product Details
    • Company Profile

    Conductive Slip Ring With Through Bore Rotary Electrical Connectors For Industry

    Conductive Slip Ring with Through Bore Rotary Electrical Connectors For Industry

    ECN060-18P1 is CENO new conductive slip ring with through bore 60mm and 18 circuits 5A electric power for industrial system. Slip ring is an electro-mechanical device which allows the transmission of power, electrical signal and data from a stationary to a rotating structure. Often called a rotary electrical interface, rotating electrical collector, electric swivel or commutation. Can improve mechanical performance and eliminate damage-prone wires dangling from movable units. More information please contact us.



    Features

    • Through bore 3-980mm optional
    • High cost-effective & long life
    • Life depend on rotation speed and environment temperature
    • Install easy & Free maintenance

    Applications

    • Robotic arms
    • Processing center
    • Pick and Place equipment
    • Working turn table
    • Engineering mechanical

    Optional

    • Circuits, Voltage, Current
    • Inner / Outer diameter
    • IP Grade & Materials
    • Lead wire size & length
    • Working temperature & speed


    Specification

    ECN060-18P1

    Specification
    Current & Circuits18 circuits * 5A
    Rating Voltage380VAC / VDC
    Dielectric strength≥1000VAC@50Hz
    Isolation resistance≥500MΩ@500VDC
    Electrical Noise≤ 70mΩ (50rpm)
    IP GradeIP51
    Working humidity≤ 60%
    Working temperature-20℃ ~ +60℃
    Inner diameterØ60mm
    Outer diameterØ135mm
    Operating speed0~300 rpm
    Contact materialPrecious Metal
    Housing materialAluminum Alloy
    Lead wire size18*0.5mm² Cable
    Lead wire lengthRotor side: 500mm; Stator side: 2000mm
    Rotation WayFix up stator side with anti-rotation side shaft to drive rotor running

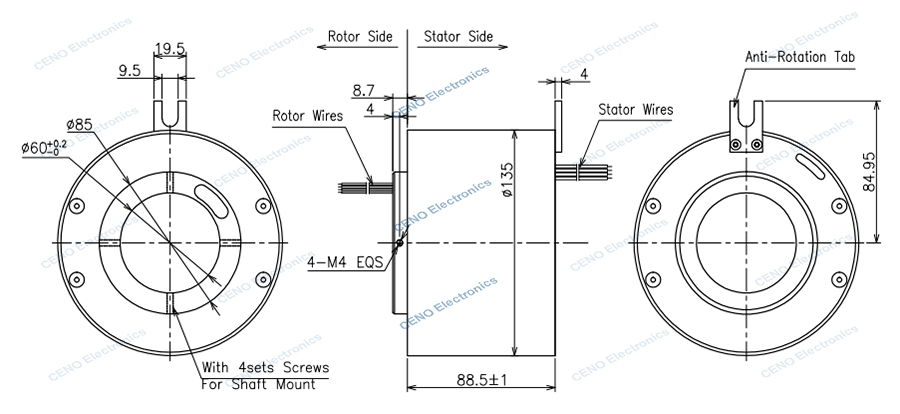

    Outline drawing




    Our Service
    1. Reply inquiry in 24 hours.
    2. Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.
    3. Answer your question detailed.
    4. Solved the problem with you during using our products.
    5. Samples will be offered to you for our future cooperation.

    FAQ

    1. What do we do?
    We focus on developing, designing, manufacturing high quality sliprings, and offer various solutions for rotating systems.

    2. How long have we been in the business?
    CENO established slip rings business since 2009. We have thousands of customers accepted our products or services.

    3. What is a slip ring?
    A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.

    4. How do I choose a slip ring?
    Proper selection of a slip ring solution requires details about your application’s operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. A good place to start your search is with our standard slip rings. If you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started.

    5. Do you offer custom slip rings?
    Yes, if you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started. Our engineers will come up with perfect solution for your needs.

    Why with CENO
    CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

    Certification
    ISO9001,CE,RoHS,UL,Explosion-proof

    CENO Advantage
    Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

    Service CENO provides
    24 hours,7days consultant service.
    Mass and customized production.
    Solution offerring for 360° rotation system.

    Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
