    Low Temperature Slip Ring With Through Hole For Industry Automatic Equipment

    Ask Lasest Price
    Brand Name : CENO
    Model Number : ECN050-14S-01EM-IP65
    Certification : CE,RoHS,UL,ISO9001
    Price : Negotiable
    Payment Terms : T/T,Paypal,Western Union, L/C
    Supply Ability : 10000pcs month
    Delivery Time : Off the shelf
    • Product Details
    • Company Profile

    Low Temperature Slip Ring With Through Hole For Industry Automatic Equipment

    Low Temperature Slip Ring with Through hole for Industry Automatic equipment

    ECN050-14S-01EM-IP65 is CENO new customized low temperature slip ring which combine thermo-couple signal, Encoder signal and Ethernet signal. CENO have kinds for signal slip ring, the integrate slip rings play an important role in industrial automation, control system and computer science, widely used on the position and velocity detection, inter process communication, or for the equipment of measure the temperature of gases or liquids in furnaces and pipelines. More information please contact us.


    Features

    • Through bore 3-1000mm option
    • Excellent materials with anti-low temperature & IP65-68 option
    • Integrate thermocouple, Ethernet and Encoder signal and optional

    Applications

    • Temperature control equipment
    • Control center equipment
    • Intelligent housing system
    • Communication centor
    • Medical equipment

    Optional

    • Circuits, Voltage, Current
    • Signals and data
    • Contact / Housing Materials
    • Protection grade
    • Working speed & temperature


    Specification

    ECN050-14S-01EM-IP65Specification
    Current & Circuits

    5 Groups thermocouple, Encoder and Ethernet signals

    Rating Voltage0-24VAC/VDC
    Dielectric strength≥300VAC@50Hz
    Isolation resistance≥100MΩ@300VDC
    Contact resistance≤30mΩ (50rpm)
    Working temperature-40°C~+60°C
    Working humidity60 %RH
    IP protection gradeIP65
    Operating speed0 ~ 300rpm
    Inner diameterØ50mm
    Housing materialAluminum Alloy
    Contact materialPrecious metal
    Lead wire size

    As customized

    Lead wire lengthAs customized
    Rotation WayFix up stator side with anti-rotation tab side

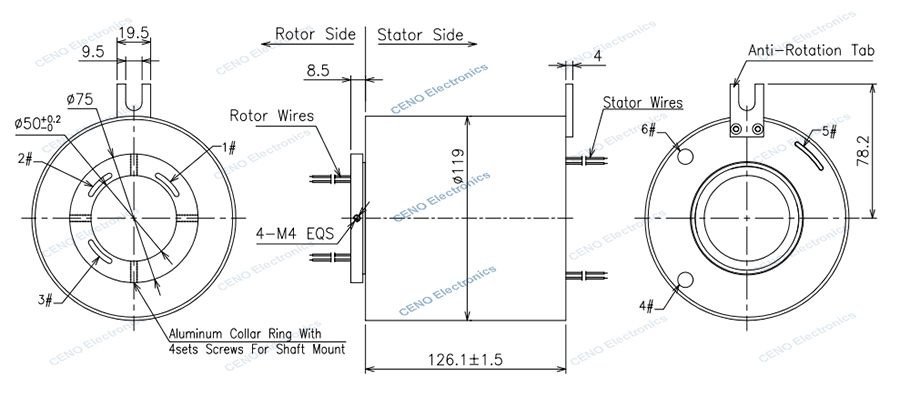

    Outline drawing



    Our Service
    1. Reply inquiry in 24 hours.
    2. Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.
    3. Answer your question detailed.
    4. Solved the problem with you during using our products.
    5. Samples will be offered to you for our future cooperation.

    FAQ

    1. What do we do?
    We focus on developing, designing, manufacturing high quality sliprings, and offer various solutions for rotating systems.

    2. How long have we been in the business?
    CENO established slip rings business since 2009. We have thousands of customers accepted our products or services.

    3. What is a slip ring?
    A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.

    4. How do I choose a slip ring?
    Proper selection of a slip ring solution requires details about your application’s operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. A good place to start your search is with our standard slip rings. If you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started.

    5. Do you offer custom slip rings?
    Yes, if you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started. Our engineers will come up with perfect solution for your needs.

    Why with CENO
    CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

    Certification
    ISO9001,CE,RoHS,UL,Explosion-proof

    CENO Advantage
    Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

    Service CENO provides
    24 hours,7days consultant service.
    Mass and customized production.
    Solution offerring for 360° rotation system.

    Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
