    Ethernet Signal Slip Ring With Flange Installation For Robotics Customized

    Ask Lasest Price
    Brand Name : CENO
    Model Number : ECN000-09P2-10S
    Certification : CE,RoHS,UL,ISO9001
    Price : Negotiable
    Payment Terms : T/T,Paypal,Western Union, L/C
    Supply Ability : 10000pcs month
    Delivery Time : Off the shelf
    • Product Details
    • Company Profile

    Ethernet Signal Slip Ring With Flange Installation For Robotics Customized

    Ethernet Signal Slip Ring with Flange installation for the Robotics

    ECN000-09P2-10S is CENO Ethernet signal slip ring with flange installation for security and protection system. Ethernet slip ring is a local area network transmission technology based on fiber optic communication technology. It achieves high-speed, stable, and reliable data transmission by combining optical fibers and cables. Ethernet slip ring can achieve seamless connection between optical fibers and cables. For more information please contact us.



    Features

    • Can be integrated various signal
    • Stable transmitting, no string code, low loss comply with EMC
    • IP 51 - IP 68 can be customized
    • Flange mounting is optional

    Applications

    • Automatic machine
    • Motion control
    • Video over Ethernet
    • CCTV IP-surveillance
    • Medical equipment

    Optional

    • Circuits, Voltage, Current
    • Contact / Housing Materials
    • Working temperature
    • Protection grade
    • Working speed


    Specification

    ECN000-09P2-10S

    Specification
    Current & Circuits14 circuits Electric power and Modbus signal
    Rating Voltage0-400VAC/VDC
    Dielectric strength≥500VAC@50Hz; ≥300VAC@50Hz
    Isolation resistance≥500MΩ@500VDC; ≥100MΩ@300VDC
    Contact resistance≤30mΩ (50rpm)
    Working temperature-20°C~+60°C
    Working humidity60 %RH
    IP protection gradeIP51
    Operating speed0 ~ 300rpm
    Outer diameterØ56mm
    Contact materialPrecious metal
    Housing materialAluminum Alloy
    Lead wire sizeAs customized
    Lead wire lengthAs customized
    Rotation WayFlange installation

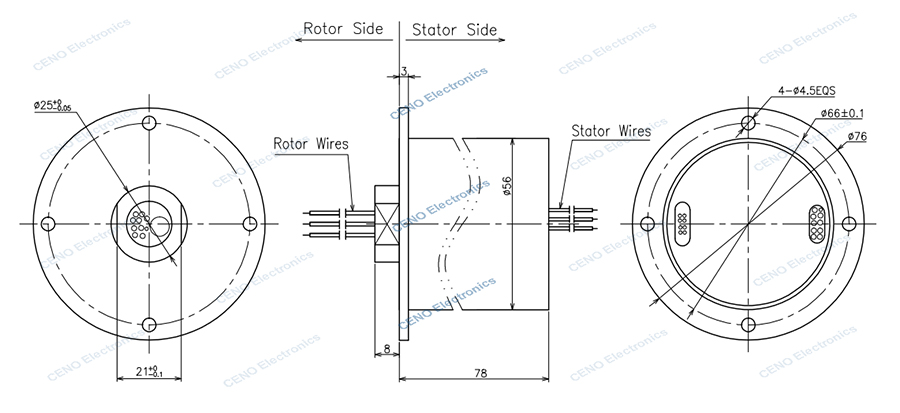

    Outline drawing



    Our Service
    1. Reply inquiry in 24 hours.
    2. Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.
    3. Answer your question detailed.
    4. Solved the problem with you during using our products.
    5. Samples will be offered to you for our future cooperation.

    FAQ

    1. What do we do?
    We focus on developing, designing, manufacturing high quality sliprings, and offer various solutions for rotating systems.

    2. How long have we been in the business?
    CENO established slip rings business since 2009. We have thousands of customers accepted our products or services.

    3. What is a slip ring?
    A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.

    4. How do I choose a slip ring?
    Proper selection of a slip ring solution requires details about your application’s operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. A good place to start your search is with our standard slip rings. If you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started.

    5. Do you offer custom slip rings?
    Yes, if you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started. Our engineers will come up with perfect solution for your needs.

    Why with CENO
    CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

    Certification
    ISO9001,CE,RoHS,UL,Explosion-proof

    CENO Advantage
    Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

    Service CENO provides
    24 hours,7days consultant service.
    Mass and customized production.
    Solution offerring for 360° rotation system.

    Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
