    Low Temperature Carbon Brush Slip Ring With -40°C~+60°C For Oilfield Or Marine

    Ask Lasest Price
    Brand Name : CENO
    Model Number : BHCN-C-05200
    Certification : CE,RoHS,ISO9001,UL
    Price : Negotiable
    Payment Terms : T/T,Paypal, Western Union
    Supply Ability : 1000pcs per month
    Delivery Time : 2 weeks
    • Product Details
    • Company Profile

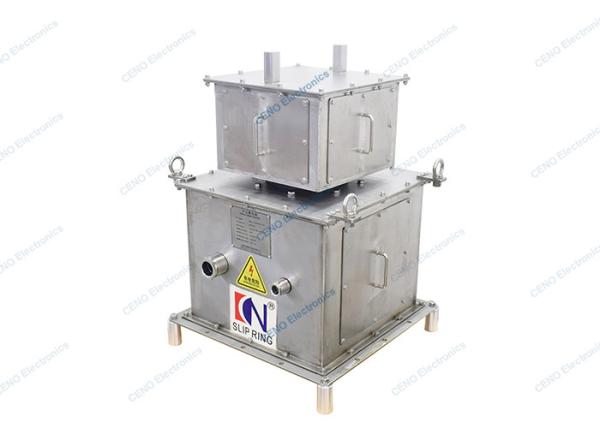

    Low Temperature Carbon Brush Slip Ring With -40°C~+60°C For Oilfield Or Marine

    Low Temperature Carbon Brush Slip Ring with -40°C~+60°C For Oilfield or Marine

    BHCN-C-05200 is CENO carbon brush slip ring and this series of slip ring widely used in port machinery, ship cranes, drilling from research and development to market launch. The marine slip ring series is designed to integrate signal rings and high-power slip rings, also known as marine collector rings or marine current collector slip rings. It mainly transmits high-power currents and integrates lighting control signals, Ethernet signals, etc. For more information please contact us.


    Features

    • Spec design &easy maintenance
    • Current 1-2000A optional
    • Excellent weather resistance and high electrical safety
    • Install easy & Free maintenance

    Applications

    • Automatic machine
    • Port machinery
    • Ship cranes
    • Drilling platform
    • Seaport machinery

    Optional

    • Circuits, Voltage, Current
    • Working temperature
    • Contact / Housing Materials
    • Wires and IP Grade
    • Working speed

    Specification

    BHCN-C-05200

    Specification
    Current & Circuits5 circuits 200A
    Rating Voltage0~380VAC/VDC
    Dielectric strength≥1500VAC@50Hz
    Isolation resistance≥500MΩ@500VDC
    Contact resistance≤30mΩ (50rpm)
    Working temperature-40°C~+60°C
    Working humidity95%RH
    IP protection gradeIP65
    Operating speed0 ~ 5 rpm
    Contact materialCopper graphite
    Housing materialStainless steel
    Connect methodScrews connect Terminal
    MaintenanceOn Schedule
    Rotation methodBrush stating, circuits rotating
    InstallationScrews fixed

    Outline drawing


    CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.


    Why with CENO


    Certification

    ISO9001,CE,RoHS,UL,Explosion-proof

    Single channel fiber optic rotary joint 6.8mm OD stainless steel


    CENO Advantage

    Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.


    Service CENO provides

    24 hours,7days consultant service.

    Mass and customized production.

    Solution offerring for 360° rotation system.


    Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
