    High Definite Capsule Slip Ring With SDI Signal And Electrical Collector

    Ask Lasest Price
    Brand Name : CENO
    Model Number : ACN25J-08P1-27P-01HD
    Certification : CE,RoHS,ISO9001,UL
    Price : Negotiable
    Payment Terms : T/T,Paypal, Western Union
    Supply Ability : 500pcs per month
    Delivery Time : 1 week
    • Product Details
    • Company Profile

    High Definite Capsule Slip Ring With SDI Signal And Electrical Collector

    High Definite Capsule Slip Ring with SDI Signal and Electrical Collector

    ACN25J-08P1-27P-01HD is High Definite Capsule Slip Ring. Slip Ring Capsule is conductive slip ring with circular flanges attached to the shell. The appearance of the capsule slip ring resembles a hat, with a compact design, small volume and easy installation. CENO capsule slip ring adopts the surface treatment process of the military industry, with ultra hard gold coating treatment, ensuring extremely low resistance fluctuation and long working life. More information please contact us.




    Features

    • Integrate SDI High definite signal and signals can customize
    • Low contact resistance and compact structure
    • Flange installation

    Applications

    • HD Security monitoring
    • VR application
    • High definition head
    • Intelligent robot
    • Photoelectric

    Optional

    • Circuit, Voltage, Current
    • Integrate signal / data
    • Contact / Housing Materials
    • Protection grade
    • Working speed & temperature


    Specification

    ACN25J-08P1-27P-01HD

    Specification
    Current & Circuits1Circuits * HD-SDI; 35 Circuits * Electric Power Signal
    Rating Voltage2-110 VAC/VDC
    Dielectric strength≥200VAC@50Hz; ≥100VAC@50Hz
    Isolation resistance≥50MΩ@200VDC; ≥10MΩ@100VDC
    Contact resistance≤35mΩ (50rpm)
    Contact MaterialGold to Gold
    Housing materialEngineering plastic
    Working temperature-20°C~+60°C
    Working humidity60 %RH
    IP protection gradeIP40
    Operating speed0 ~ 50rpm
    Outer diameterØ25mm
    Lead wire sizeCustomized
    Lead wire lengthCustomized

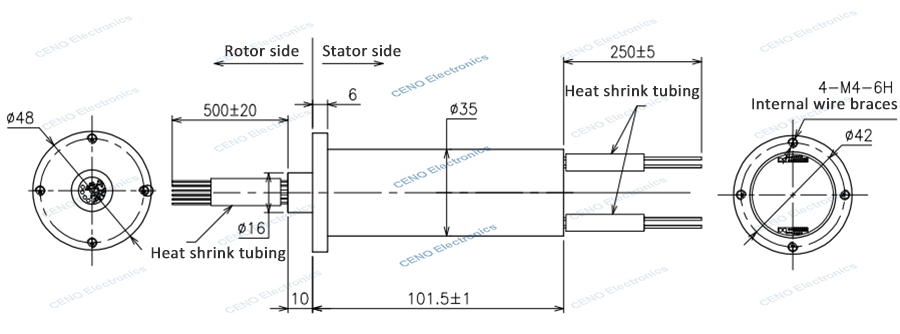

    Outline drawing

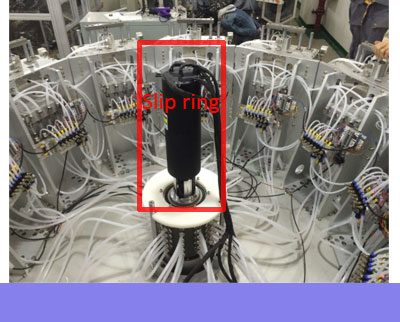

    Application


    Why with CENO

    CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

    10MPa air rotary union 2 channel air 6 circuits 5Amp power integral slip ring


    Certification

    ISO9001,CE,RoHS,UL,Explosion-proof

    Single channel fiber optic rotary joint 6.8mm OD stainless steel


    CENO Advantage

    Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.


    Service CENO provides

    24 hours,7days consultant service.

    Mass and customized production.

    Solution offerring for 360° rotation system.


    Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
