    Low Temperature Carbon Brush Slip Ring with Through Bore For Automatic Machine

    Ask Lasest Price
    Brand Name : CENO
    Model Number : BHCN-C-190-16P2
    Certification : CE,RoHS,UL,ISO9001
    Price : Negotiable
    Payment Terms : T/T,Paypal,Western Union, L/C
    Supply Ability : 10000pcs month
    Delivery Time : Off the shelf
    • Product Details
    • Company Profile

    Low Temperature Carbon Brush Slip Ring with Through Bore For Automatic Machine

    Low Temperature Carbon Brush Slip Ring with Through Bore For Automatic Machine

    BHCN-C-190-16P2 is CENO carbon brush slip ring with 16 circuits electric power for low temperature environment. CENO have rich experience in design and manufacture carbon brush slip rings. It adopt unique structural design and scientific simulation calculations to ensure the current of each loop and ensure the stability of the current transmitted by the product of a long time. Most of CENO product size follows the small and refined design concept. For more information please contact us.



    Features

    • Carbon brush design & can used in low temperature environment
    • Advanced contact materials with ageing resistance
    • Install & maintenante easily

    Applications

    • Automatic machine
    • Material handling equipment
    • Marine Crane
    • Engineering machinery
    • Polar region

    Optional

    • Circuits, Voltage, Current
    • Contact Materials
    • Working temperature & speed
    • Lead wire size & length
    • Protection grade


    Specification

    BHCN-C-190-16P2

    Specification
    Current & Circuits16 circuits 10A
    Rating Voltage0~380VAC/VDC
    Dielectric strength≥1000VAC@50Hz
    Isolation resistance≥500MΩ@500VDC
    Contact resistance≤10mΩ (50rpm)
    Working temperature-40°C~+60°C
    Working humidity95%RH
    IP protection gradeIP00
    Operating speed0 ~ 5 rpm
    Inner boreØ190mm
    Contact materialCopper graphite
    Housing materialAluminum alloy
    Connect methodScrews connect Terminal
    MaintenanceOn Schedule
    Rotation methodBrush stating, loop rotating
    InstallationFlange installation
    Net weight≤ 80kg

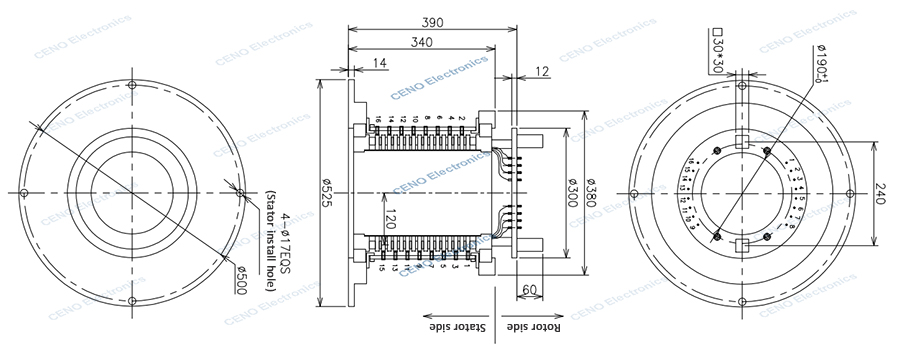

    Outline drawing



    Our Service
    1. Reply inquiry in 24 hours.
    2. Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.
    3. Answer your question detailed.
    4. Solved the problem with you during using our products.
    5. Samples will be offered to you for our future cooperation.

    FAQ

    1. What do we do?
    We focus on developing, designing, manufacturing high quality sliprings, and offer various solutions for rotating systems.

    2. How long have we been in the business?
    CENO established slip rings business since 2009. We have thousands of customers accepted our products or services.

    3. What is a slip ring?
    A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.

    4. How do I choose a slip ring?
    Proper selection of a slip ring solution requires details about your application’s operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. A good place to start your search is with our standard slip rings. If you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started.

    5. Do you offer custom slip rings?
    Yes, if you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started. Our engineers will come up with perfect solution for your needs.

    Why with CENO
    CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

    Certification
    ISO9001,CE,RoHS,UL,Explosion-proof

    CENO Advantage
    Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

    Service CENO provides
    24 hours,7days consultant service.
    Mass and customized production.
    Solution offerring for 360° rotation system.

    Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
