    Low Temperature Slip Ring with Ethernet signal and Conductive Connector

    Ask Lasest Price
    Brand Name : CENO
    Model Number : ECN038-04P4-10S-01EM
    Certification : CE,RoHS,UL,ISO9001
    Price : Negotiable
    Payment Terms : T/T,Paypal,Western Union, L/C
    Supply Ability : 10000pcs month
    Delivery Time : Off the shelf
    • Product Details
    • Company Profile

    Low Temperature Slip Ring with Ethernet signal and Conductive Connector

    Low Temperature Slip Ring with Ethernet signal and Conductive Connector


    ECN038-04P4-10S-01EM is CENO low temperature slip ring with through bore design and Ethernet signal for high altitude airborne equipment. CENO have multi product line for kinds of function slip rings, including high / low temperature slip ring. The main challenges faced by low-temperature slip rings are lubrication, material shrinkage and unstable signal transmission caused by electrical performance changes. For more information please contact us.



    Features

    • Low temperature design with special sealing type
    • Stable transmitting, no string code, low loss comply with EMC
    • Install easy & Free maintenance

    Applications

    • High altitude airborne equipment
    • Military equipment
    • Polar region
    • Communication systems
    • Medical equipment

    Optional

    • Circuits, Voltage, Current
    • Working temperature
    • Contact / Housing Materials
    • Protection grade
    • Working speed

    Specification

    ECN038-04P4-10S-01EM

    Specification
    Current & Circuits9 Circuits Electric power, Ethernet and Rs422 Signals
    Rating Voltage0 ~ 28VAC/VDC
    Dielectric strength≥300VAC@50Hz
    Isolation resistance≥100MΩ@300VDC
    Contact resistance≤70mΩ (50rpm)
    Contact materialPrecious Metal
    Housing materialAluminum Alloy
    Working temperature-55°C~+70°C
    Working humidity60%RH
    IP protection gradeIP54
    Operating speed0~300rpm
    Inner diameterØ38.1mm
    Outer diameterØ101mm
    Lead wire size

    As customized

    Lead wire lengthAs customized
    InstallationStator side fixing lug; Rotor side screws fixed
    MaintenanceOn schedule

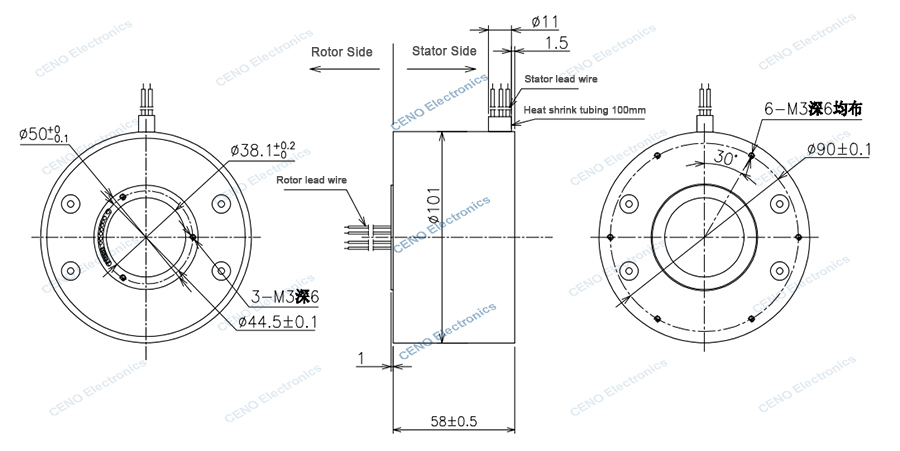

    Outline drawing



    Our Service
    1. Reply inquiry in 24 hours.
    2. Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.
    3. Answer your question detailed.
    4. Solved the problem with you during using our products.
    5. Samples will be offered to you for our future cooperation.

    FAQ

    1. What do we do?
    We focus on developing, designing, manufacturing high quality sliprings, and offer various solutions for rotating systems.

    2. How long have we been in the business?
    CENO established slip rings business since 2009. We have thousands of customers accepted our products or services.

    3. What is a slip ring?
    A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.

    4. How do I choose a slip ring?
    Proper selection of a slip ring solution requires details about your application’s operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. A good place to start your search is with our standard slip rings. If you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started.

    5. Do you offer custom slip rings?
    Yes, if you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started. Our engineers will come up with perfect solution for your needs.

    Why with CENO
    CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

    Certification
    ISO9001,CE,RoHS,UL,Explosion-proof

    CENO Advantage
    Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

    Service CENO provides
    24 hours,7days consultant service.
    Mass and customized production.
    Solution offerring for 360° rotation system.

    Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
