    Rotating Electrical Connector Slip Ring with Through Bore For Rotary Machines

    Ask Lasest Price
    Brand Name : CENO
    Model Number : ECN060-14P-24S
    Certification : CE,RoHS,ISO9001,UL
    Price : Negotiable
    Payment Terms : T/T,Paypal, Western Union
    Supply Ability : 500pcs per month
    Delivery Time : 1 week
    • Product Details
    • Company Profile

    Rotating Electrical Connector Slip Ring with Through Bore For Rotary Machines

    Rotating Electrical Connector Slip Ring with Through Bore For Rotary Machines


    ECN060-14P-24S is CENO new through hole slip ring with circuits electric power and signals. CENO through bore slip ring can be used in any electro mechanical system that requires unrestrained, intermittent or continuous rotation while transferring power, signal or data. A slip ring can improve system performance by simplifying operations and eliminating damage prone wires. CENO through hole slip ring provides an economical, readily available solution when a compact through-bore configuration is required.



    Specification

    ECN060-14P-24SSpecification
    Current & Circuits32 circuits Electric power and Signal
    Rating Voltage0 ~ 220VAC/VDC
    Dielectric strength≥1000VAC@50Hz; ≥300VAC@50Hz
    Isolation resistance≥500MΩ@500VDC; ≥100MΩ@100VDC
    Contact resistance≤30mΩ (50rpm)
    Contact materialPrecious Metal
    Housing materialAluminum alloy
    Working temperature-20°C~+60°C
    Working humidity60 %RH
    IP protection gradeIP51
    Operating speed0~300rpm
    Inner diameterØ60mm
    Outer diameterØ135mm
    Lead wire sizeAs Customized
    Lead wire lengthAs Customized
    Rotation WayRotor side fixed on shaft of equipment with screws

    Features

    • Through bore 3-900mm option
    • Continuous rotation of power and / or signals or data
    • Can be integrated various data
    • Compact package &Install easy

    Applications

    • Packing machines
    • Rotary machines
    • Automation equipment
    • Medical equipment
    • Inspection equipment

    Optional

    • Circuits, Voltage, Current
    • Inner / Outer bore size
    • Contact / Housing Materials
    • Working temperature & speed
    • IP Grade

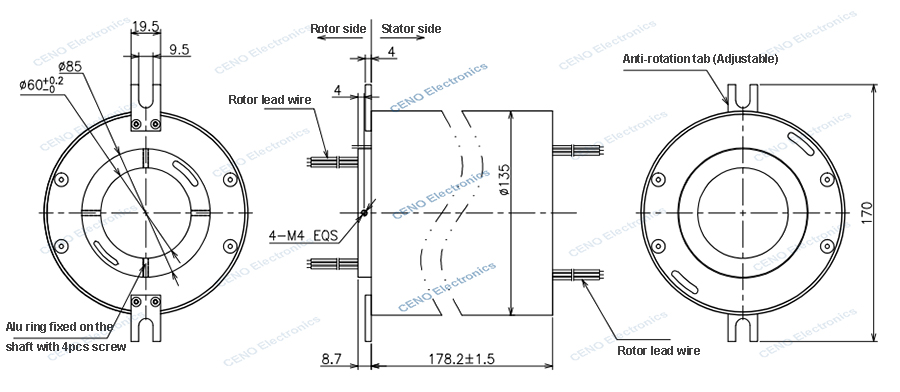

    Outline drawing



    Our Service

    1. Reply inquiry in 24 hours.

    2. Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.

    3. Answer your question detailed.

    4. Solved the problem with you during using our products.

    5. Samples will be offered to you for our future cooperation.


    FAQ

    1. What do we do?

    We focus on developing, designing, manufacturing high quality sliprings, and offer various solutions for rotating systems.


    2. How long have we been in the business?

    CENO established slip rings business since 2009. We have thousands of customers accepted our products or services.


    3. What is a slip ring?

    A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.


    4. How do I choose a slip ring?

    Proper selection of a slip ring solution requires details about your application’s operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. A good place to start your search is with our standard slip rings. If you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started.


    5. Do you offer custom slip rings?

    Yes, if you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started. Our engineers will come up with perfect solution for your needs.


    Why with CENO


    CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

    10MPa air rotary union 2 channel air 6 circuits 5Amp power integral slip ring


    Certification

    ISO9001,CE,RoHS,UL,Explosion-proof

    Single channel fiber optic rotary joint 6.8mm OD stainless steel


    CENO Advantage

    Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.


    Service CENO provides

    24 hours,7days consultant service.

    Mass and customized production.

    Solution offerring for 360° rotation system.


    Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
