    BLDC MOTOR With Large Toque Higher Efficiency Direct-drive For Smart Appliances

    Ask Lasest Price
    Brand Name : CENO
    Model Number : CNBL-3220DO
    Certification : ISO9001,CE,RoHS
    Price : Negotiable
    Payment Terms : T/T,Paypal, Western Union
    Supply Ability : 1000pcs per month
    Delivery Time : 2 weeks
    • Product Details
    • Company Profile

    BLDC MOTOR With Large Toque Higher Efficiency Direct-drive For Smart Appliances

    CNBL-3220DO BLDC MOTOR


    PN# CNBL-3220DO

    Power 20 ~ 100W


    Custom Configuration

    If you want to know more information about how CENO Motor can fit your specification and application, please contact us


    Features

    • Big Large torque,long life
    • Higher efficiency, Lower noise
    • Out-rotor structure, Direct-drive
    • Working stable and smooth
    • Install easy & Free maintenance

    Applications

    • Smart applications
    • Instrument
    • Micro Pump
    • Micro Valve
    • Meter

    Optional

    • Circuits, Voltage & current
    • Output shaft
    • Lead wire & mounting hole
    • Connector
    • Working speed

    Optional

    CNBL-3220DO Parameter
    VoltageOperating range8~1618~26
    Nominal V1224
    NO LOADWorking speed rpm32006310
    Current A0.10.097
    AT MAXIMUM EFFICIENCYWorking Speed26675496
    Current A0.50.653
    Torque mN.m13.34219.177
    Output W3.72611.037
    STARTINGTorque mN.m80.05148.618
    Current A2.54.409

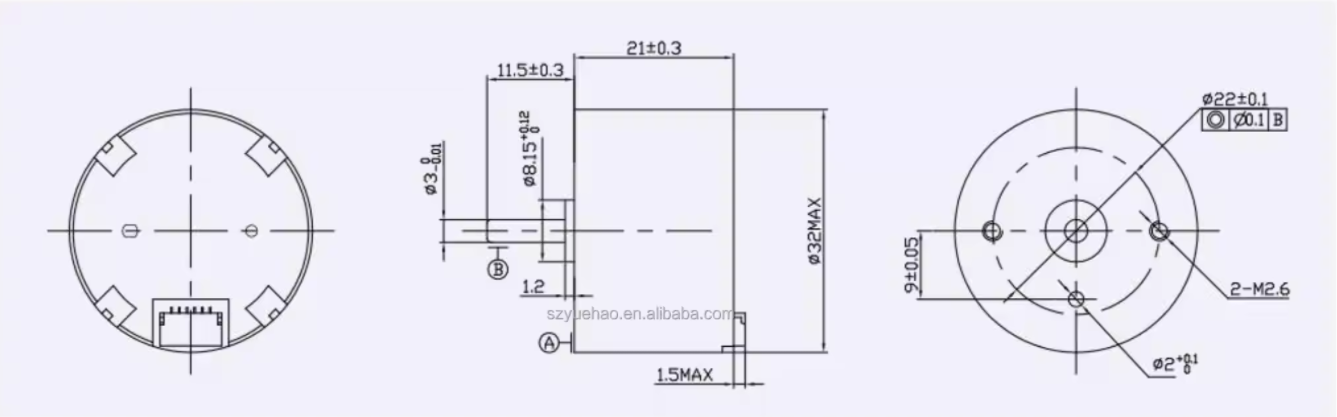

    Outline drawing


    Why with CENO

    CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.


    Certification

    ISO9001,CE,RoHS,UL,Explosion-proof

    Single channel fiber optic rotary joint 6.8mm OD stainless steel


    CENO Advantage

    Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.


    Service CENO provides

    24 hours,7days consultant service.

    Mass and customized production.

    Solution offerring for 360° rotation system.


    Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
