    CNBL-5265SI BLDC MOTOR Maximum Torque of 73.24mN.m and 0.642A Current for Micro Pump Valve

    Ask Lasest Price
    Brand Name : CENO
    Model Number : CNBL-5265SI
    Certification : ISO9001,CE,RoHS
    Price : Negotiable
    Payment Terms : T/T,Paypal, Western Union
    Supply Ability : 1000pcs per month
    Delivery Time : 2 weeks
    • Product Details
    • Company Profile

    CNBL-5265SI BLDC MOTOR Maximum Torque of 73.24mN.m and 0.642A Current for Micro Pump Valve

    CNBL-5265SI BLDC MOTOR


    PN# CNBL-5265SI

    Power 10 ~ 100W


    Custom Configuration

    If you want to know more information about how CENO Motor can fit your specification and application, please contact us


    Features

    • Big Large torque,long life
    • Higher efficiency, Lower noise
    • Out-rotor structure, Direct-drive
    • Working stable and smooth
    • Install easy & Free maintenance

    Applications

    • Smart applications
    • Instrument
    • Micro Pump
    • Micro Valve
    • Meter

    Optional

    • Circuits, Voltage & current
    • Output shaft
    • Lead wire & mounting hole
    • Connector
    • Working speed

    Optional

    CNBL-5265SI Parameter
    VoltageOperating range8~1618~26
    Nominal V1224
    NO LOADWorking speed rpm24801902
    Current A0.2240.086
    AT MAXIMUM EFFICIENCYWorking Speed22111677
    Current A1.8370.642
    Torque mN.m81.6973.24
    Output W18.91812.866
    STARTINGTorque mN.m752.78620.23
    Current A15.0874.796

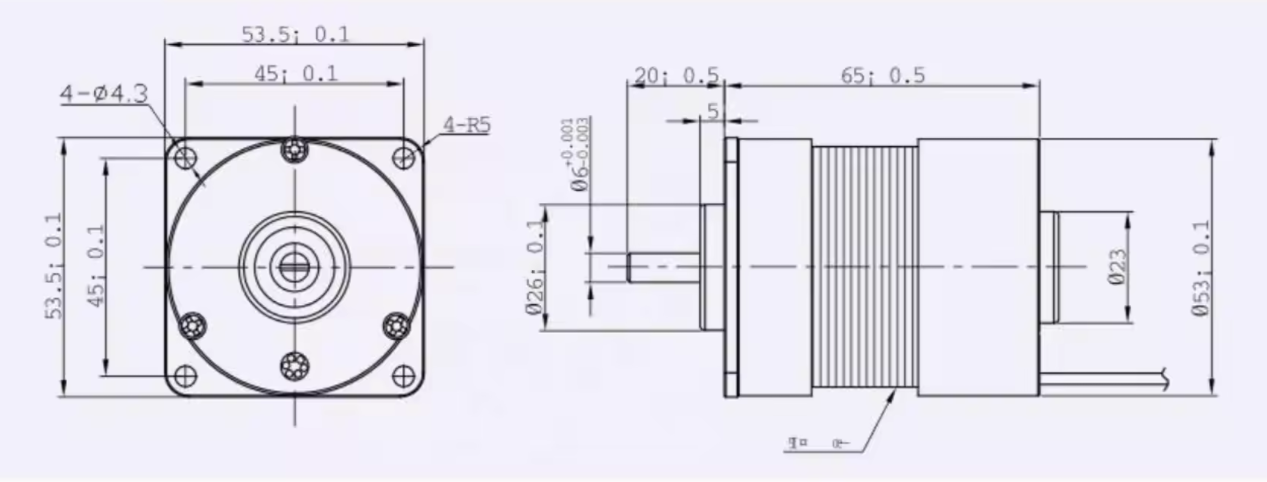

    Outline drawing
